Space-Saving Hydraulic Liftgate for Trucks

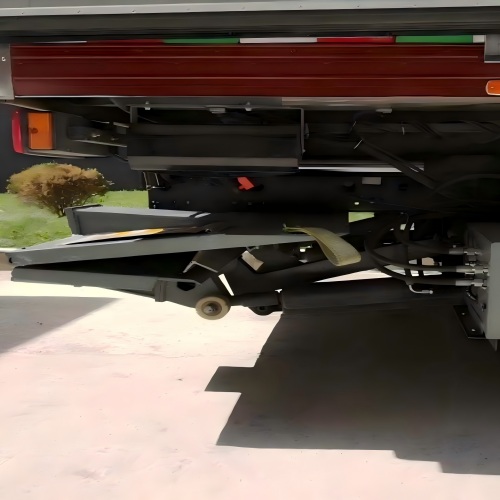

A tuck-away tail lift (also called tuckunder tail lift or folding tail lift) is a hydraulic platform that folds and slides completely under the truck chassis when not in use. Unlike cantilever tail lifts that fold vertically against the rear door, tuck-away lifts disappear entirely under the vehicle.
Key Features & Benefits
| Feature | Benefit |
| Folds under chassis | Platform completely hidden when not in use |
| Full rear access | Rear doors open 100% – no obstruction |
| Hydraulic operation | Smooth, powerful lifting |
| Anti-slip platform | Safety in wet or icy conditions |
| Overload protection | Prevents lifting beyond capacity |
| Manual override | Operate during power failure |
| Low profile design | Minimal ground clearance impact |
| Specification | Detail |
| Type | Tuck-away / Tuckunder / Folding tail lift |
| Capacity | 500kg, 1000kg, 1500kg, 2000kg |
| Platform material | Steel with anti-slip coating |
| Platform size | 1800mm x 2000mm (custom available) |
| Operation | Hydraulic + electric control |
| Voltage | 12V or 24V DC |
| Storage | Folds and slides under chassis |
| Lifting time | 12–18 seconds |
| Lowering time | 10–15 seconds |
| Operating temperature | -20°C to +50°C |
| Safety features | Overload valve, anti-slip platform, emergency stop |
| Certification | CE certified |
| Warranty | 12 months |
Available Models (Tuck-Away Tail Lifts for Sale)
| Model | Capacity | Platform Size | Voltage | Chassis Height |
| MT-TA-05 | 500 kg | 1600 x 1800 mm | 12V/24V | 800–1000 mm |
| MT-TA-10 | 1000 kg | 1800 x 2000 mm | 12V/24V | 900–1200 mm |
| MT-TA-15 | 1500 kg | 1800 x 2000 mm | 24V | 1000–1300 mm |
| MT-TA-20 | 2000 kg | 2000 x 2200 mm | 24V | 1100–1400 mm |
Custom sizes available upon request.
Applications
| Industry | Why Tuck-Away? |
| Urban delivery | Frequent stops – quick deploy/store |
| Postal services | Need full rear door access |
| Food & beverage | Multiple deliveries per route |
| Retail distribution | Tight loading docks |
| Pharmaceuticals | Temperature-controlled – fast access |
