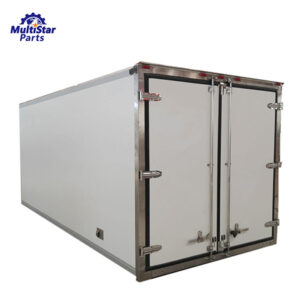

Frozen Truck Body (-25°C ~ -18°C)

Whether you need a single insulated box for truck or a fleet of freezer truck bodies, Multistar Parts Co., Ltd. is your trusted refrigerated box supplier for fleet operators worldwide. Our products are engineered for durability, thermal efficiency, and easy integration with leading reefer units.

InquiryDownload PDFContact us Whatsapp

Overview
Upgrade Options
Features
Technical Data
Construction

A high-performance reefer truck body designed for ice cream, frozen meat, seafood, and quick-frozen foods. This frozen truck box maintains stable low temperatures even in hot ambient conditions.

Standard: High-strength front wall panel with FRP inner liner + aluminum outer skin, filled with high-density polyurethane foam. Protective barrier between cab and cargo body.
Upgrade Options:

Roof fairing / wind deflector (fuel saving)
Stainless steel front impact guard
Front service door (easy access to reefer unit)

Standard: Single swing door on left or right side. Aluminum frame, EPDM rubber seal, anti-theft lock.

Upgrade Options:

Dual side doors (left + right)
Sliding side door (space-saving)
Full-height side door (forklift compatible)
Stainless steel hinges + heavy-duty lock
Side door with inspection window

Standard: Steel subframe + marine plywood floor + anti-slip aluminum tread plate surface. Integrated drain channels.

Upgrade Options:

All-aluminum floor (lightweight)
Stainless steel floor (corrosion-resistant, easy to clean)
Heavy-duty floor (forklift & pallet jack compatible)
Floor heating system (for freezer bodies – prevents ice buildup)
Integrated drainage system

Standard: Aluminum or steel rear door frame integrated into body structure. Double rubber seal design.

Upgrade Options:

Stainless steel rear frame (higher strength)
Oversized frame (for large pallet access)
Corner impact protectors
Heated door seals (for freezer bodies)

Standard: Steel rear bumper, black painted, bolted to subframe.

Upgrade Options:

Hot-dip galvanized rear bumper
Stainless steel rear bumper
Rubber impact blocks
Integrated step (easy cab access)

Standard: Interior LED ceiling lights (12V), rear warning lights, pre-installed wiring harness.

Upgrade Options:

24V electrical system (for European trucks)
Multiple interior LED light strips
Exterior side lighting
Backup camera wiring interface
Multiple power outlets
USB charging ports (connected to cab)

Standard: One-piece aluminum or FRP roof panel, polyurethane foam insulation, FRP inner ceiling liner.

Upgrade Options:

Reinforced roof (walkable for maintenance)
Integrated roof gutters
Skylight or roof vent
Roof-mounted reefer unit bracket
Solar panel system (auxiliary power)

Standard: None (structural for retrofit)

Upgrade Options:

Hydraulic tail lift – capacities from 500kg to 3000kg
Types: Tuck-away, column, cantilever, slider
12V or 24V hydraulic pump
Remote control operation
Anti-slip platform
Impact protection corners

Standard: Steel subframe bolted to body floor. Compatible with major truck chassis (Dongfeng, Sinotruk, Foton, Volvo, MAN, Mercedes-Benz, etc.)

Upgrade Options:

Hot-dip galvanized anti-corrosion treatment
Lightweight aluminum subframe
Quick-release mounting system
Rubber vibration dampening pads

Standard: White aluminum outer skin, polyurethane foam insulation, FRP or aluminum inner liner. Rounded aluminum edge trim on all corners.

Upgrade Options:

Colored aluminum or custom paint (company logo available)
Stainless steel outer skin (higher strength)
Scratch-resistant coating
Reinforced corner posts (stacking strength)

Standard: Pre-drilled mounting points on side walls for E-Track or cargo tie-downs.

Upgrade Options:

E-Track horizontal rails (single or multiple rows)
Ratchet straps and cargo belts
Adjustable cargo bulkhead (movable partition)
Wall impact guards
Shelf mounting brackets

Standard: Pre-installed mounting interface for refrigeration unit. Pre-routed refrigerant line passages and electrical wiring.

Upgrade Options:

Pre-installed reefer unit mounting bracket
Multi-temperature zone system (2 or 3 independent zones)
Standby power connection (parking mode cooling)
Remote temperature monitoring system
Compatible with Thermo King, Carrier Transicold, Huasu units

Standard: Double swing doors (left and right opening). Aluminum door panels, EPDM rubber seals, anti-theft locking rods.

Upgrade Options:

Roll-up door (fast opening, space-saving)
Full-opening rear doors (maximum clearance)
Rear doors with inspection windows
Stainless steel door hinges
Electric or pneumatic door assist
Heated rubber seals (freezer bodies)

Standard: FRP inner liner, light-colored easy-clean surface, radiused corners for hygiene.

Upgrade Options:

Stainless steel inner liner (food-grade, corrosion-resistant)
Aluminum tread plate liner
Impact-resistant wall guards
Ventilated floor channels (improves cold air circulation)
Insulated strip curtains (reduces cold air loss)

Standard: None (mounting points预留)

Upgrade Options:

Single or double-tier aluminum shelving
Adjustable height shelving
Drawer-type shelving (for quick picking)
Short shelving paired with side doors
Stainless steel food-grade shelving

Standard: High-density polyurethane (PUR) foam, thickness 60mm, thermal conductivity ≤0.025 W/(m·K). Suitable for refrigerated applications (-10°C to +20°C).

Upgrade Options:

Thickness upgrade: 80mm or 100mm (lower thermal conductivity)
High-density insulation (50+ kg/m³)
VIP (Vacuum Insulation Panel) – ultra-thin, high efficiency
Freezer-grade insulation (rated for -30°C)
Thermal bridge-free construction

Key Features:

Maintains -18°C even at 43°C ambient temperature
ECO quick-cooling technology with hydrocarbon refrigerants (R290/R600a)
Temperature fluctuation within ±2°C to prevent freeze-thaw damage
Low-frost design for your refrigerated truck box

Product Specifications

Parameter	10ft	12ft	14ft	16ft	20ft	24ft
Internal Length	3000mm	3600mm	4200mm	4800mm	6000mm	7200mm
Internal Width	2100mm	2100mm	2100mm	2100mm	2400mm	2400mm
Internal Height	2000mm	2000mm	2000mm	2000mm	2200mm	2200mm
Temperature Range	-25°C~-18°C	-25°C~-18°C	-25°C~-18°C	-25°C~-18°C	-25°C~-18°C	-25°C~-18°C
Insulation Thickness	100mm	100mm	100mm	100mm	120mm	120mm

Component	Material	Features
Outer skin	White aluminum (0.8–1.2mm)	Corrosion-resistant, easy to clean
Inner liner	FRP (fiberglass reinforced plastic)	Food-grade, impact-resistant, easy to sanitize
Core insulation	High-density polyurethane foam	Seamless injection molding – no thermal bridges
Floor	Aluminum tread plate or FRP	Anti-slip, integrated drain channels
Door seals	EPDM rubber	Air-tight, flexible, long-lasting
