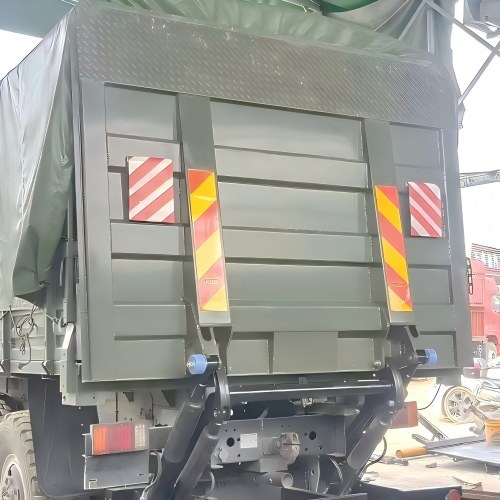

Hydraulic Cantilever Tailgate for Trucks
A cantilever tail lift operates using a pivoting mechanism. Unlike vertical column lifts that move straight up and down, the cantilever design extends outward horizontally from the truck, then descends vertically to ground level. This unique movement provides greater flexibility for loading and unloading in tight spaces or on uneven terrain.
Key characteristics of a cantilever tailgate lift:
- 🔄 Pivots at a fixed point – smooth, controlled motion
- ➡️ Extends horizontally – reaches past obstacles or uneven ground
- ⬇️ Descends vertically – stable platform placement
Because of these features, cantilever tail lifts are widely used in urban delivery, warehouse logistics, and general freight transport.
Why Choose a Cantilever Tail Lift?
| Advantage | Description |
| High load capacity | Handles 500kg – 2500kg easily |
| Level platform | Platform stays horizontal – no tilting |
| Low failure rate | Simple, proven hydraulic mechanism |
| High safety | Anti-slip platform, overload protection |
| Multi-action operation | Vertical lift, rear flip, horizontal extension |
| Easy operation | Electric control + pump station system |
Available Models (Cantilever Tail Lifts for Sale)
| Model | Capacity | Platform Size | Voltage | Best For |
| MT-CL-05 | 500 kg | 1600 x 1800 mm | 12V/24V | Light vans |
| MT-CL-10 | 1000 kg | 1800 x 2000 mm | 12V/24V | Box trucks |
| MT-CL-15 | 1500 kg | 1800 x 2000 mm | 24V | Heavy trucks |
| MT-CL-20 | 2000 kg | 2000 x 2200 mm | 24V | Heavy trucks |
| MT-CL-25 | 2500 kg | 2200 x 2400 mm | 24V | Large trucks / trailers |
| Industry | Common Use | Recommended Capacity |
|---|---|---|
| Postal services | Parcel delivery, mail trucks | 500kg – 1000kg |
| Logistics & freight | Pallet loading, warehouse delivery | 1500kg – 2000kg |
| Financial (cash transport) | Armored vehicles, cash boxes | 500kg – 1000kg |
| Retail distribution | Store delivery, palletized goods | 1000kg – 1500kg |
| Food & beverage | Beverage pallets, food distribution | 1500kg – 2000kg |
| Industrial goods | Machinery, heavy parts | 2000kg – 2500kg |
