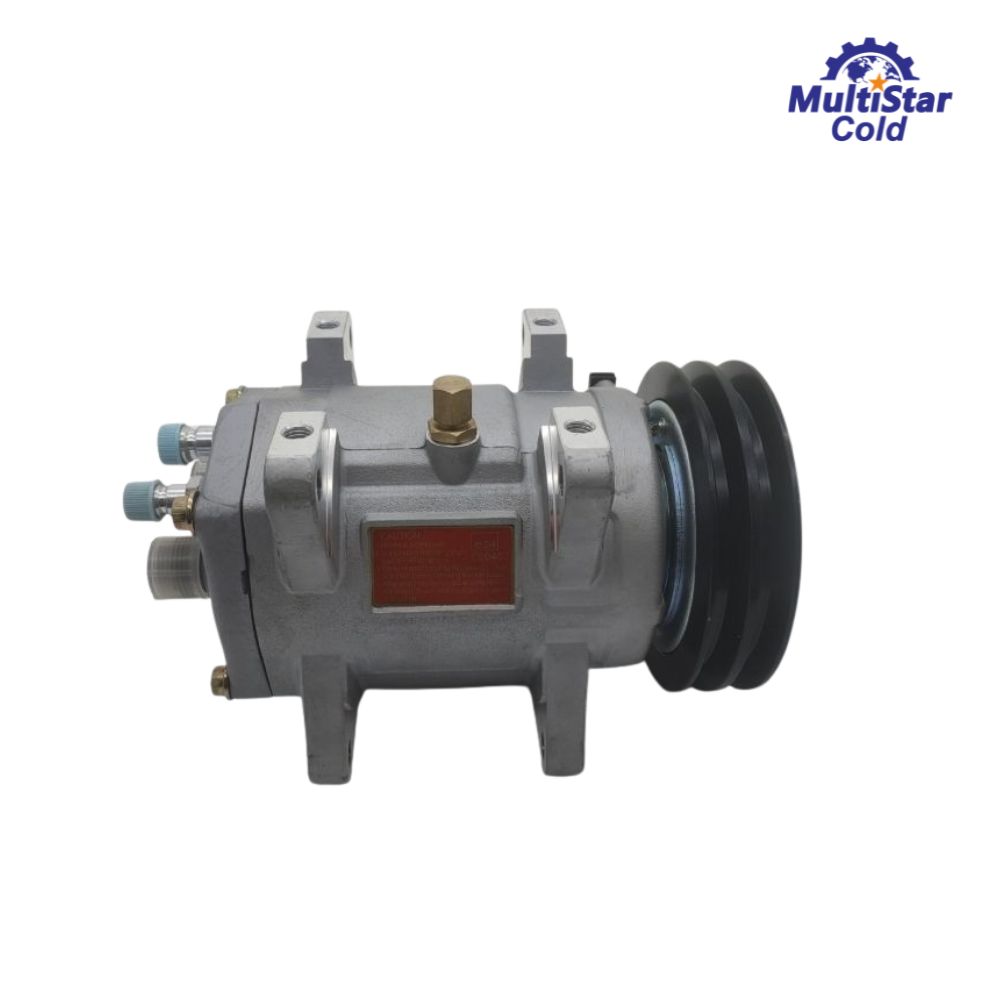

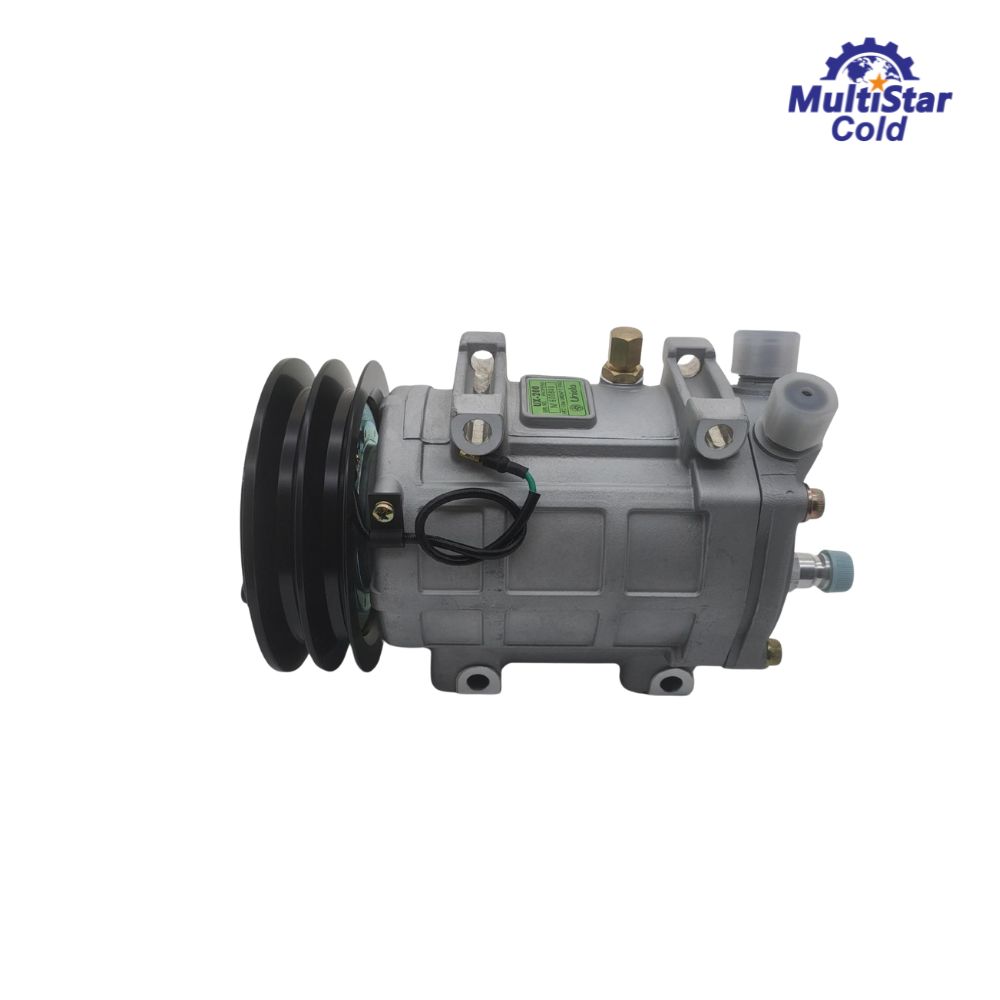

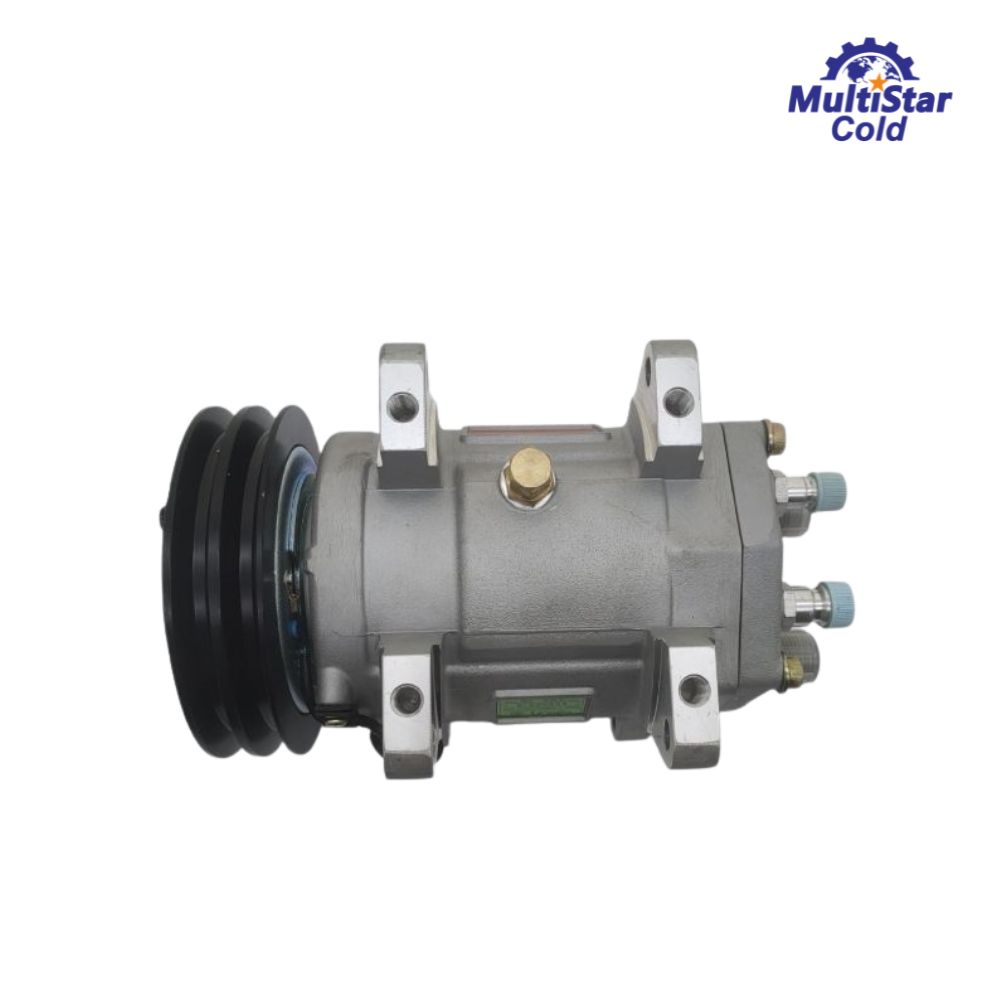

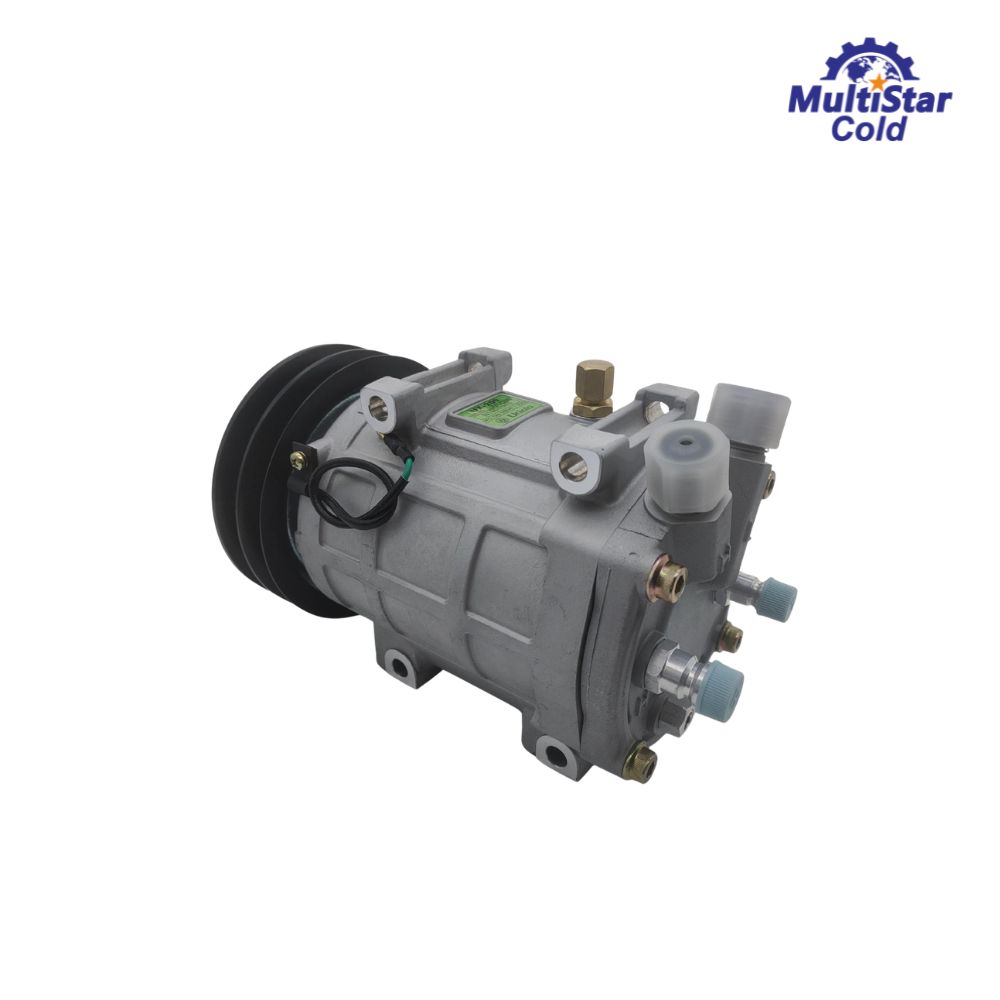

UNICLA UX200 Auto Air Conditioning Compressor
MultiStar Parts – Your Source for Bus Air Conditioner Parts
The UNICLA UX200 is a 10-cylinder swash plate compressor from the Unicla 200 Series, engineered for heavy-duty air conditioning applications in buses, trucks, and construction equipment. With a displacement of 200 cc/rev and a system capacity of 6-11 kW, it delivers smooth, quiet operation across all rev ranges up to 6000 rpm . It is designed to handle demanding conditions such as mining, construction, military vehicles, and public transport .
CROSS-REFERENCE PART NUMBERS:
- UX200
Parameter
Specification
Model
UX200 (also UXF200 for refrigeration)
Type
10-cylinder swash plate
Displacement
200 cc/rev
System Capacity
6-11 kW
Max Speed
6000 rpm continuous
Rotation
Clockwise or counterclockwise with no loss in efficiency
Voltage Options
12V or 24V
Oil Type
PA656 (180 ml) for A/C, P0532 (180 ml) for refrigeration
Weight
10.9 kg
Mounting
Direct mount, side mounting points 94mm apart
🚚 Applications
The UX200 is used across a wide range of heavy-duty equipment and vehicles:
Unicla compressors are found on vehicles from manufacturers including Daimler, Thales, Otokar, and in systems from Carrier Transicold, Sigma, and Eberspaecher .
