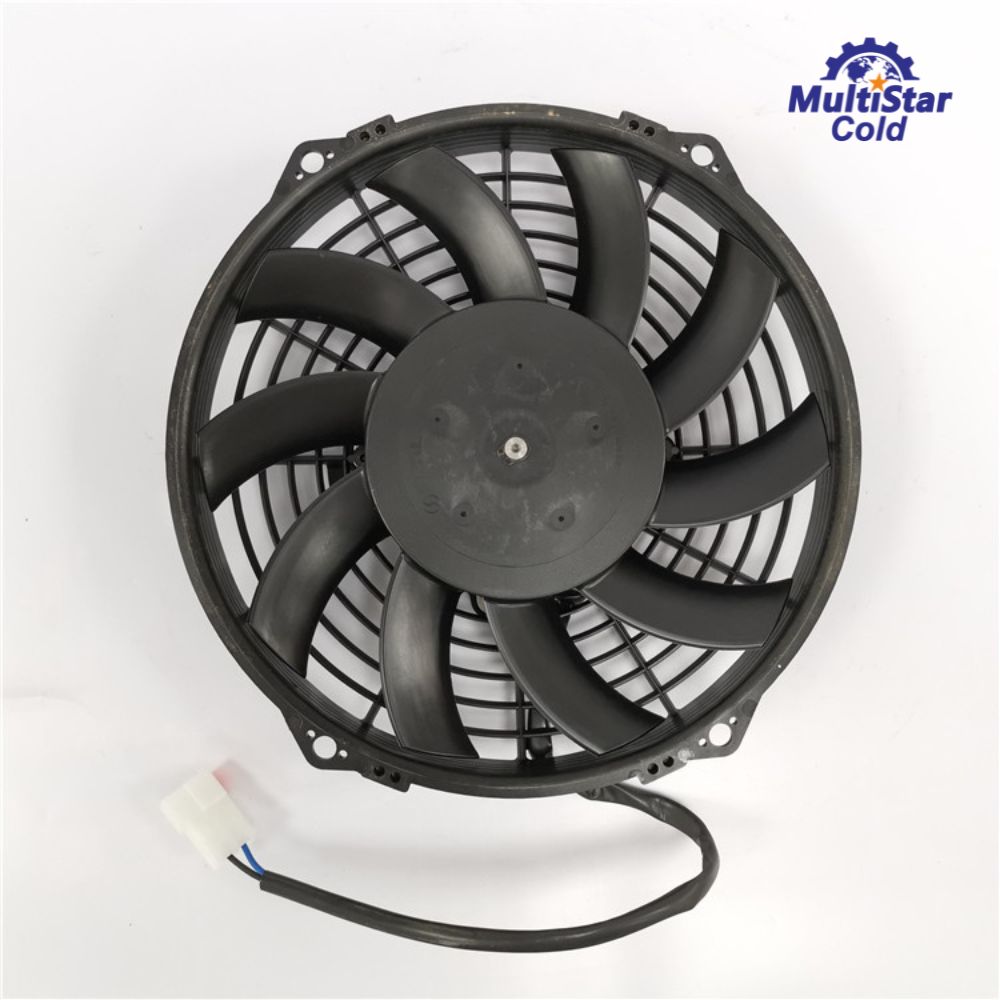

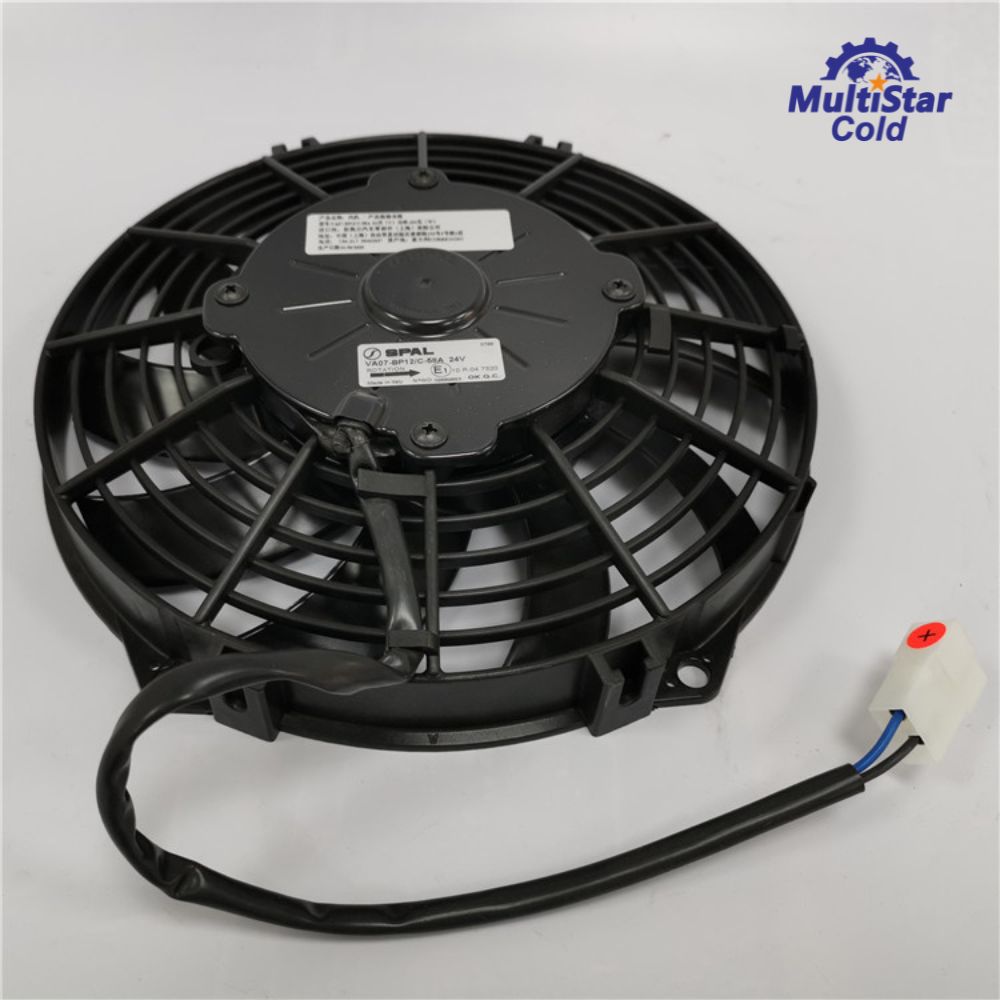

Multistar Parts Co., Ltd. offers a high-quality China-made alternative to the SPAL VA07-BP12/C-58A 24V suction fan. Engineered to meet or exceed original equipment specifications, our replacement fan delivers the same reliable performance at a significantly lower cost – making it the ideal choice for fleet operators, workshops, and distributors worldwide .
CROSS-REFERENCE PART NUMBERS:
- VA07-BP12/C-58A
- EF3536
- 30100336
| Maximum Airflow (at zero Static Pressure) | 690CFM (1170m³/h) |
| Fan Blade Ø | 225mm (9″) |
| Standard Features | Waterproof motor, IP 68 |
| Noise | Low noise |
| Life | Long life |
| Warranty | 12 Months Guarantee |
| Operating Voltage | 24v (tested at:26v) |
| IP Rating | IP68 |
| SPAL Type/Description | VA07-BP12/C-58A |
| Airflow Direction | Suction |
| Mounting Bolt/Screw | M5 bolt |
| Mounting Torque | 3(+1/-0) Nm |
Multistar Parts Co., Ltd. – Your trusted partner for bus air condidtioner parts and complete thermo king parts and carrier transicold parts . OEM-grade quality, competitive pricing, global shipping from China.
🚍 Applications
Our China-made VA07-AP7/C-31S fan is a direct replacement for OEM units in:
Automotive Cooling – Radiator and condenser pusher applications
Bus & Coach HVAC Systems – Condenser and evaporator cooling
Truck Refrigeration Units – Auxiliary cooling
Off-Highway & Construction Equipment – Engine, oil, and transmission cooling
Agricultural Machinery – Radiator and cabin cooling
