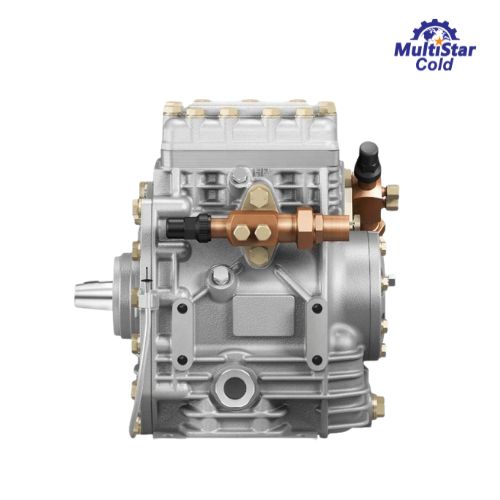

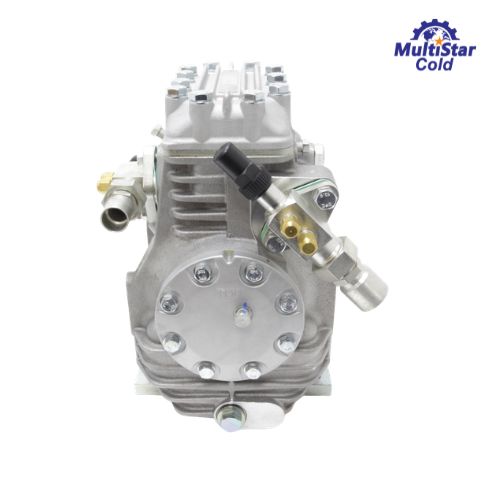

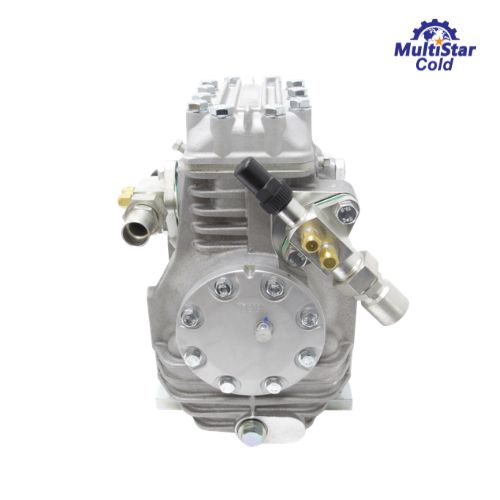

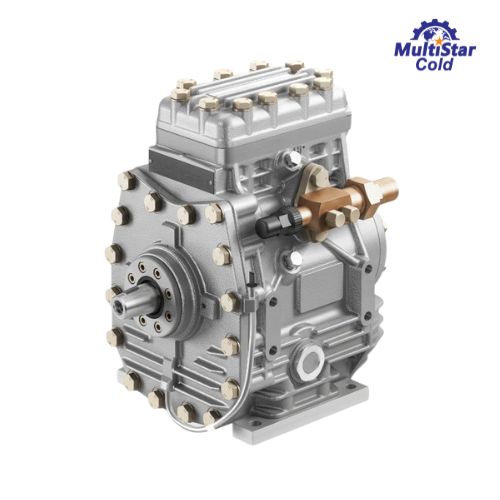

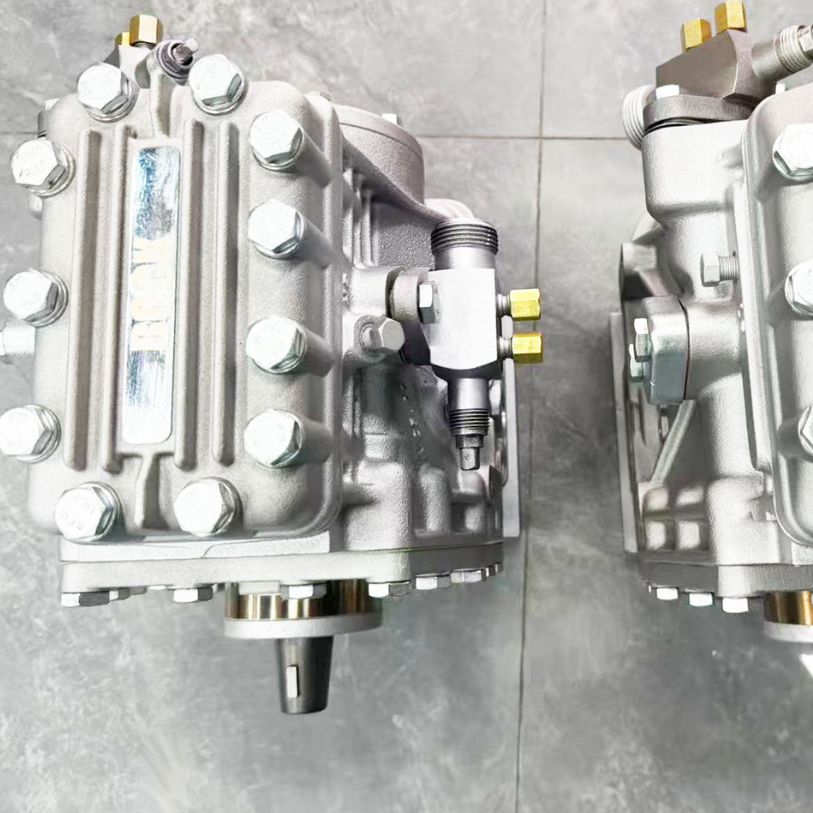

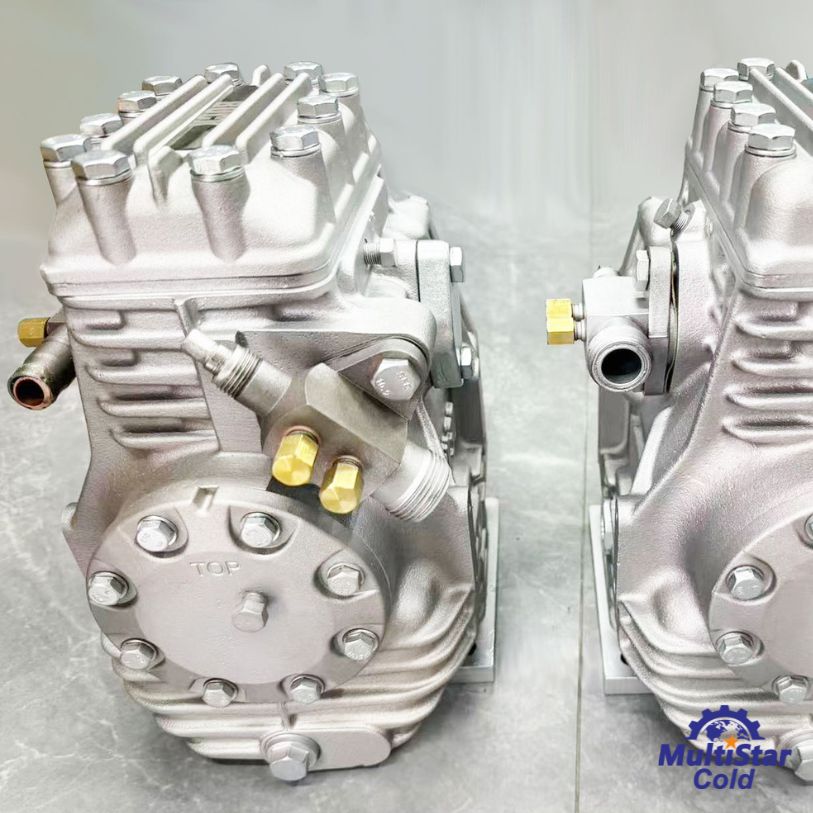

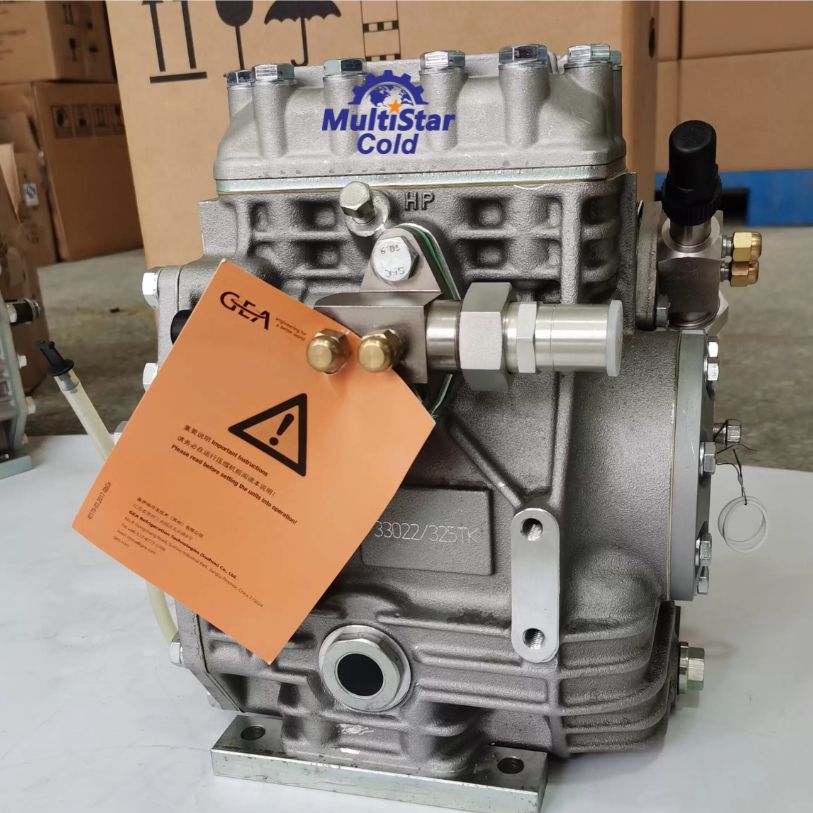

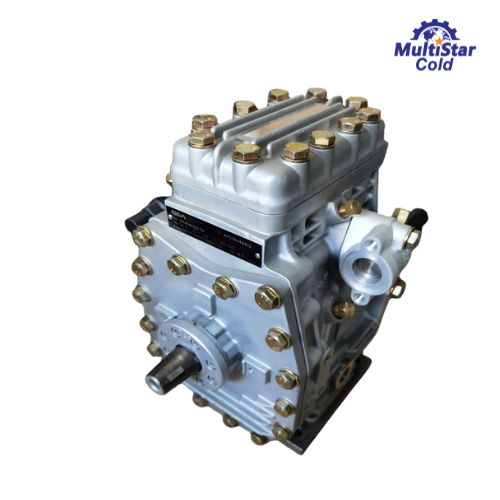

Bock FK30/325 TK Compressor

MultiStar Parts – Your Source for Bus Air Conditioner Parts

The GEA Bock FKX30/325 TK is an open-type reciprocating compressor from the BOCK FK series, specifically engineered for deep-freezing (TK Design) transport refrigeration applications

CROSS-REFERENCE PART NUMBERS:

  • FK30/325 TK

Parameter
Specification
Model
FKX30/325 TK
Part Number
097G0472 / 097B14338
Application Design
TK – Deep-freezing
Number of Cylinders
2 (in-line)
Bore x Stroke
65 mm x 49 mm
Swept Volume
325 cm³
Displacement @1450 rpm
28.3 m³/h
Displacement @2600 rpm
50.7 m³/h
Weight
25.0 – 25.3 kg
Dimensions (L x W x H)
329 x 270 x 324 mm
Oil Charge
BOCKlub E55 – 2.0 L
Permissible Speed Range
500 – 2600 rpm
Max. Pressure (LP/HP)
19 / 28 bar
Suction Connection
28 mm – 1 1/8″
Discharge Connection
22 mm – 7/8″

Brand new, factory-sealed, with full manufacturer warranty.

Manufactured locally, tailored for regional specifications and compliance.

Multistar Parts Co., Ltd. – Your trusted partner for GEA Bock FKX30/325 TK compressors and complete transport refrigeration solutions. OEM-grade quality, competitive dealer-level pricing, and global shipping from China.

For more information use the form below or email us: info@multistar-parts.com
