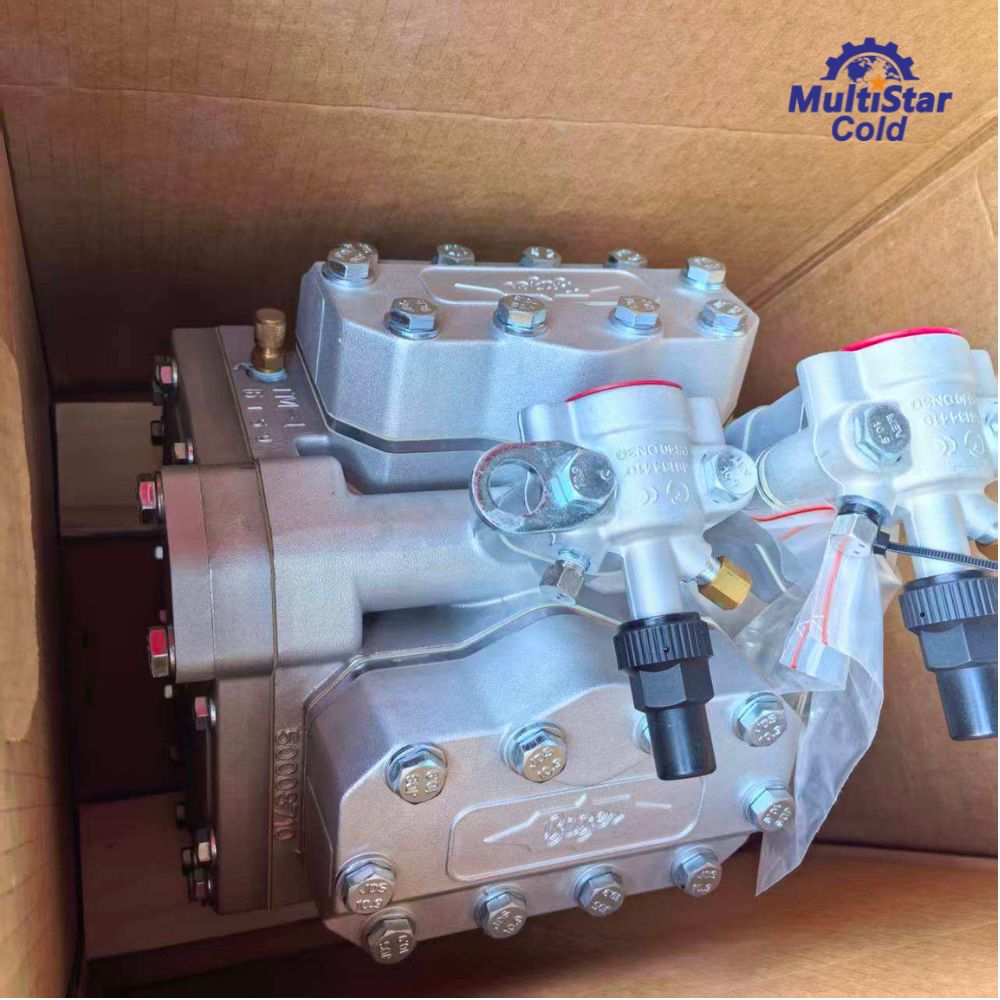

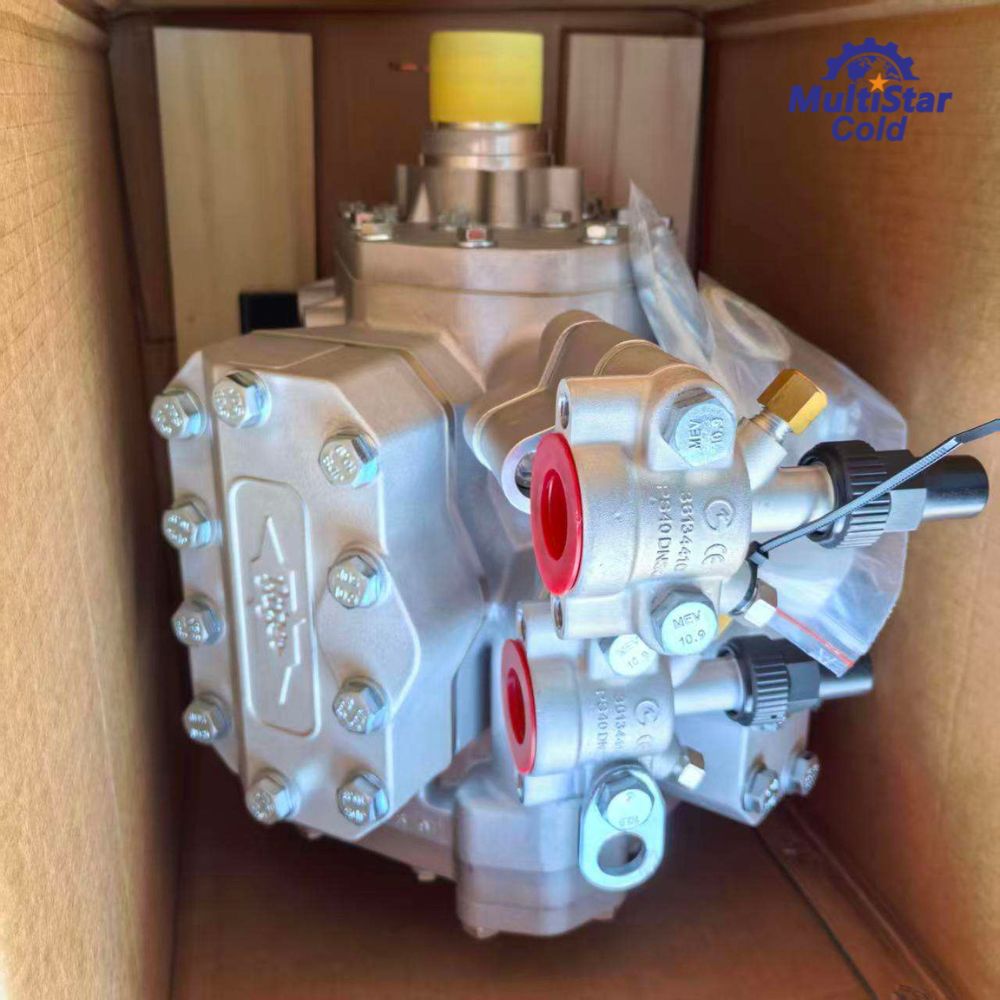

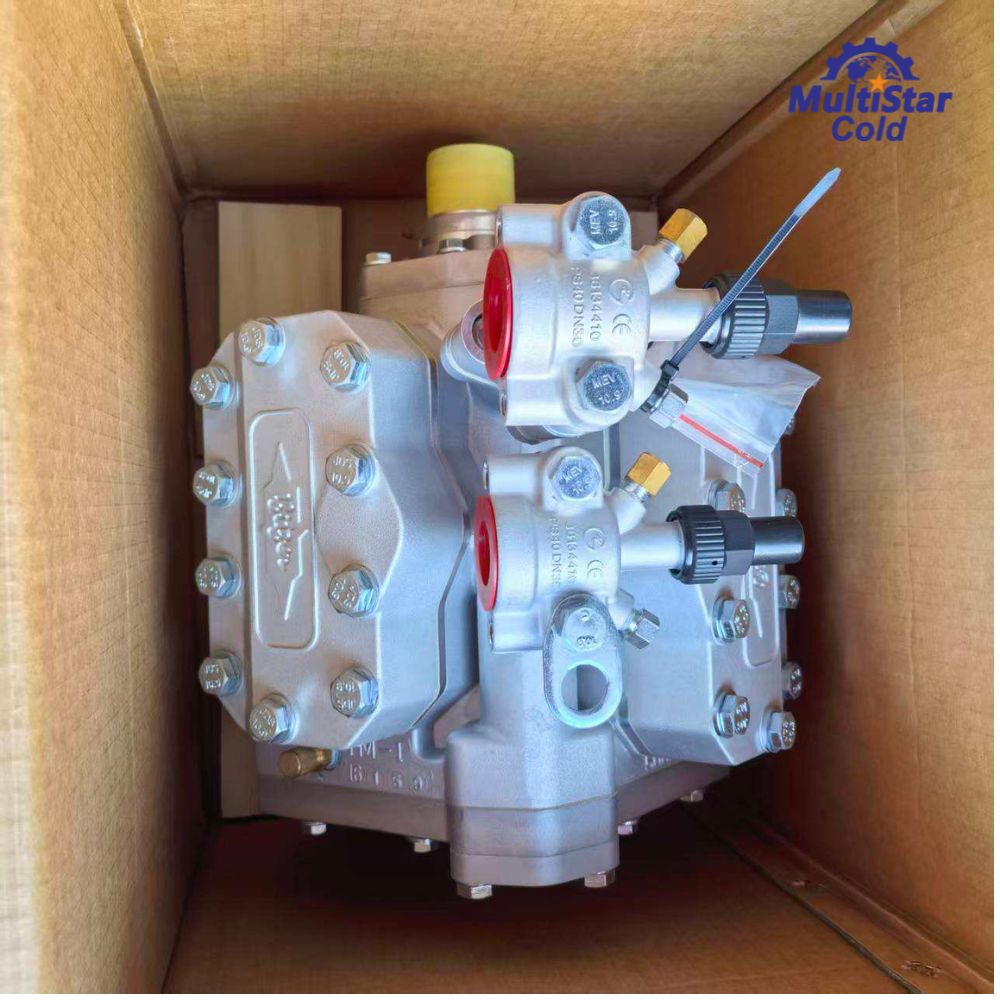

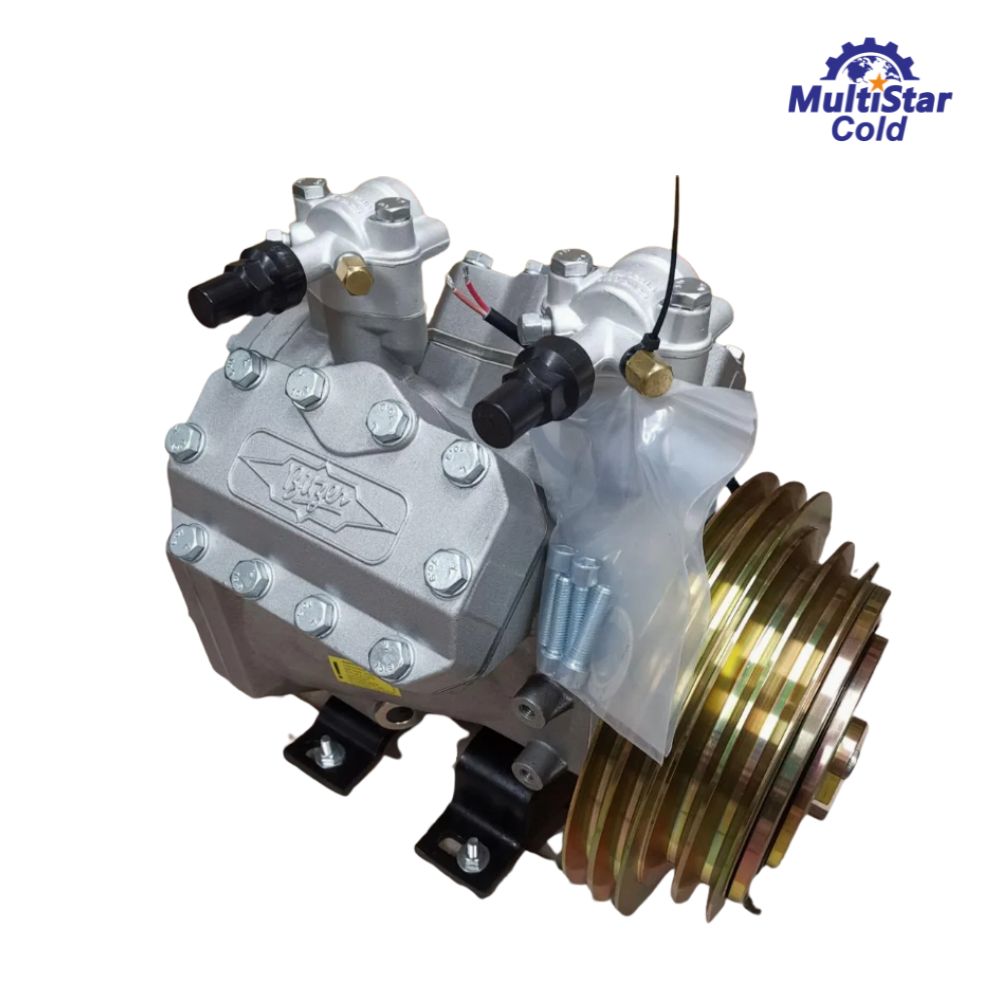

BITZER F600 Bus AC Compressor – 6-Cylinder Open Drive
MultiStar Parts – Your Source for Bus Air Conditioner Parts
The BITZER F600 is a heavy-duty 6-cylinder open-drive reciprocating compressor designed for large-capacity bus air conditioning applications. As part of the F-series family alongside the F400Y, the F600 offers greater displacement and cooling capacity for larger bus fleets and demanding operating conditions.
CROSS-REFERENCE PART NUMBERS:
- F600Y, F 600 Y, F-600-Y, F600, F 600
- H13-004-503, H13004503
Parameter
Specification
Model
F600
Number of cylinders
6
Cylinder volume
606 cc
Displacement (at 1450 rpm)
53.0 m³/h
Displacement (at 3000 rpm)
109.3 m³/h
Weight
~34 kg
Oil charge
1.5 L
Suction line connection
35 mm
Discharge line connection
28 mm
Speed range
500 – 4500 rpm
The F600 is widely used in:
Underfloor HVAC systems
Large city buses (over 12 meters)
Intercity and coach buses
High-capacity rooftop AC units
Recommended Magnetic Clutch
| Parameter | Specification |
|---|---|
| Model | LINNIG LA18.060Y or equivalent |
| Voltage | 24V |
| Torque rating | ≥200 Nm |
Multistar Parts Co., Ltd. – Your trusted partner for bus air conditioning compressors and complete HVAC spare parts. OEM-grade quality, competitive pricing, global shipping from China.
