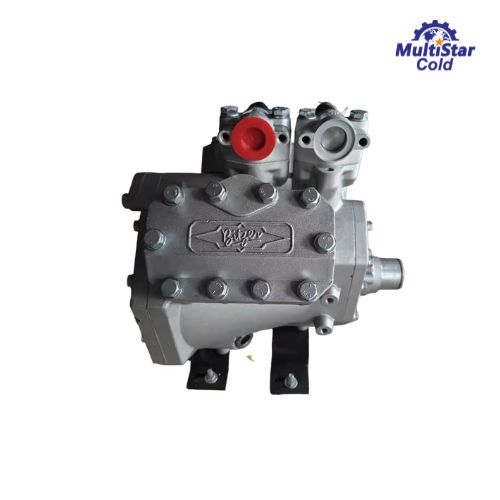

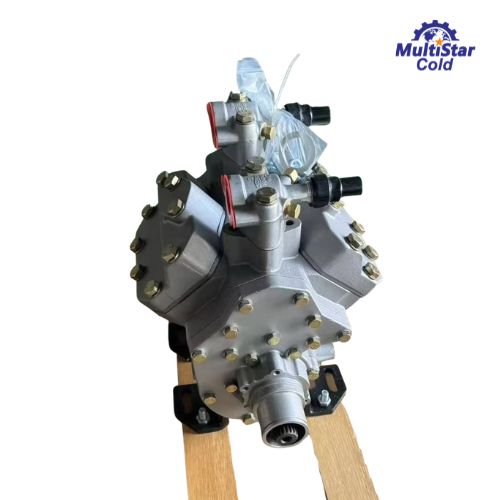

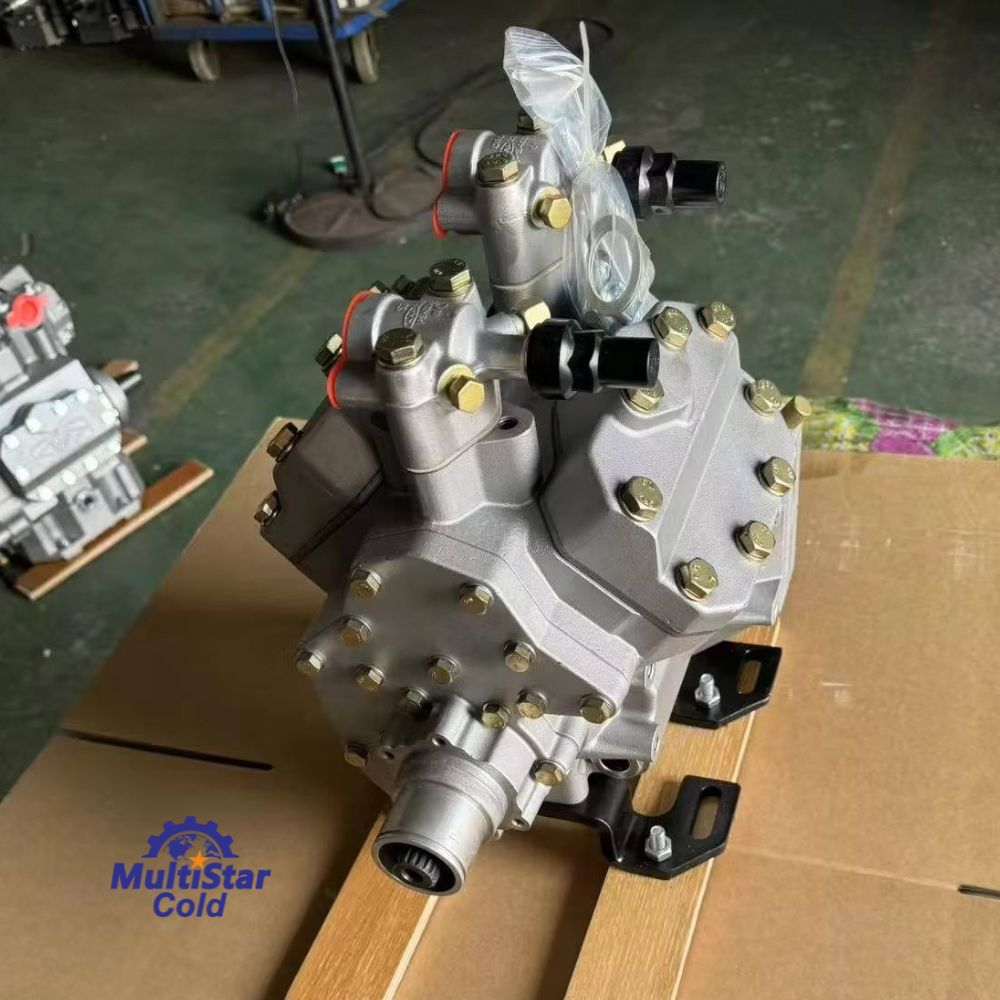

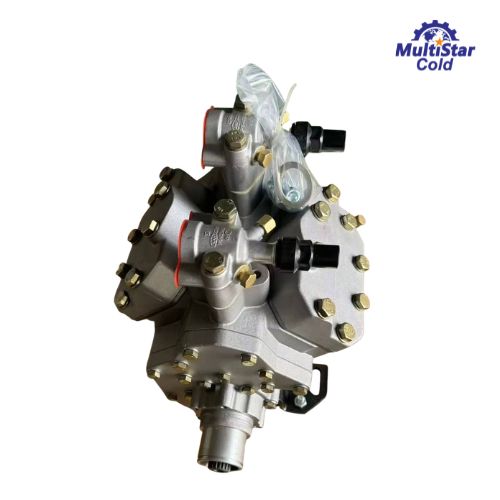

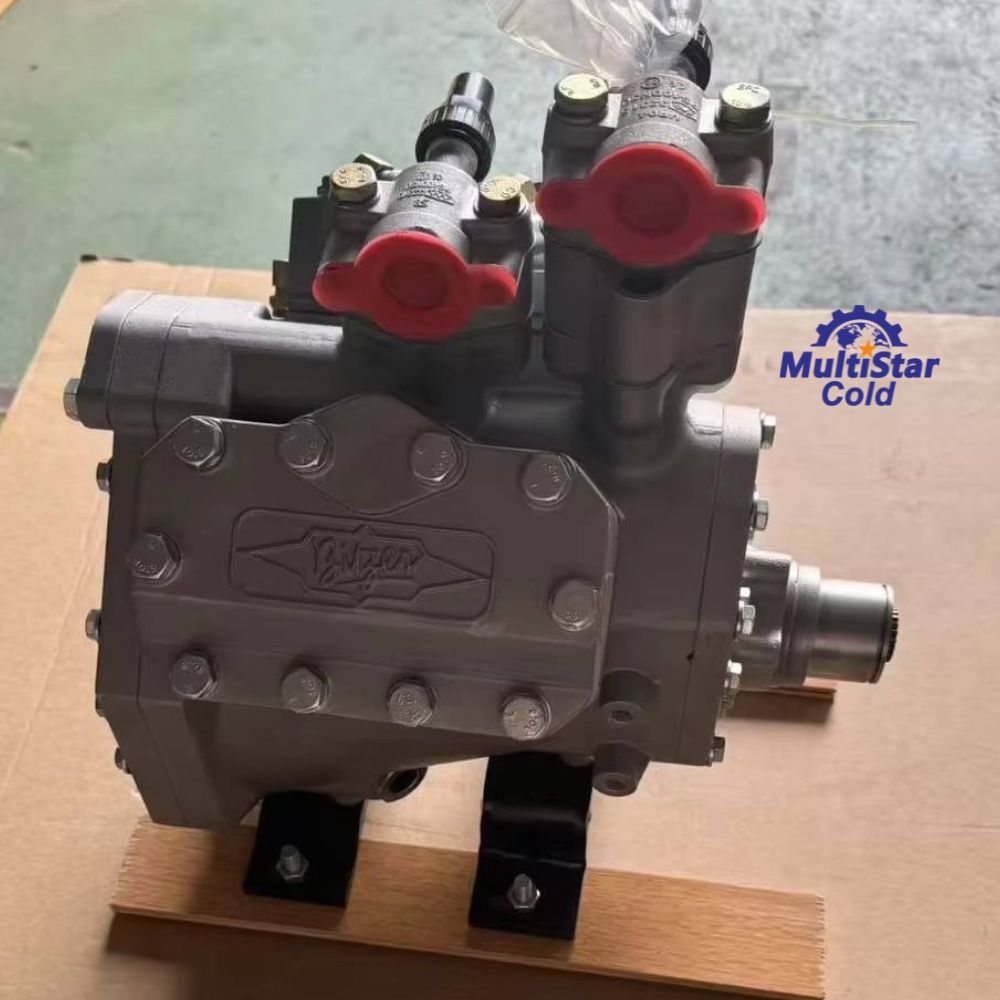

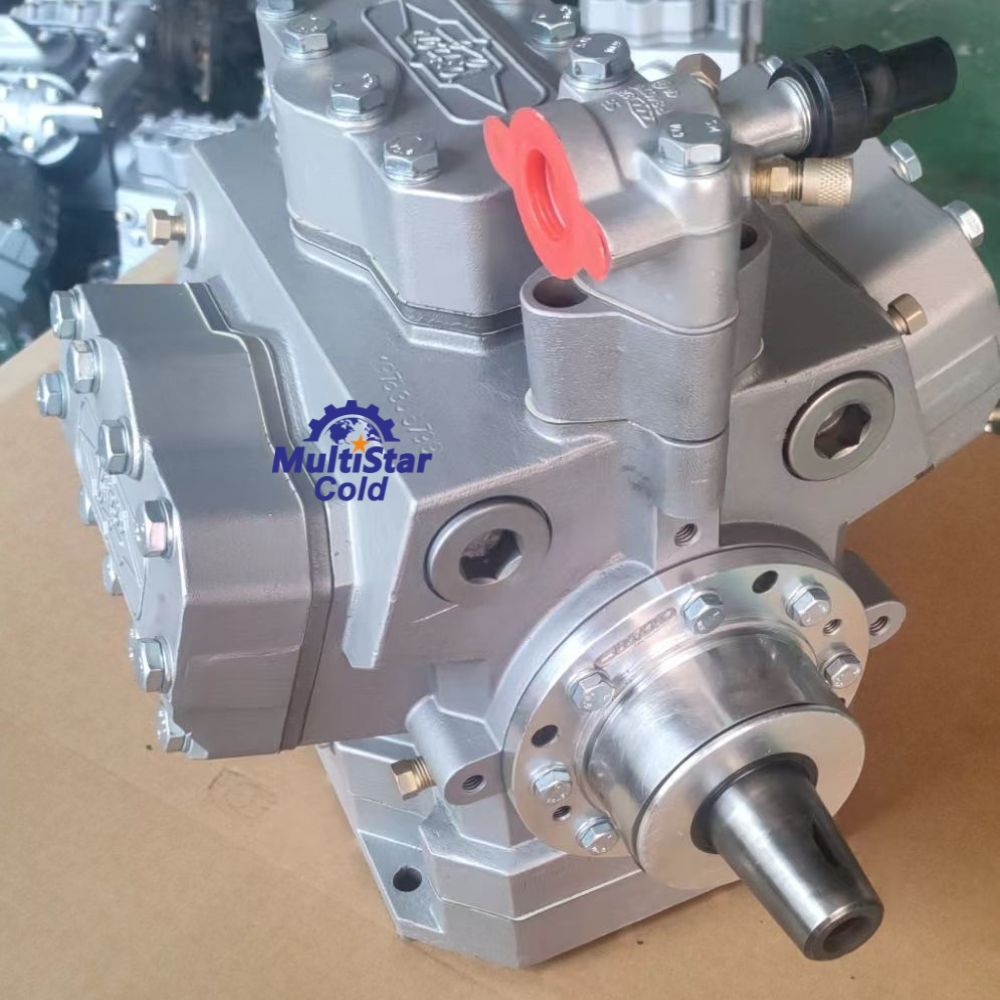

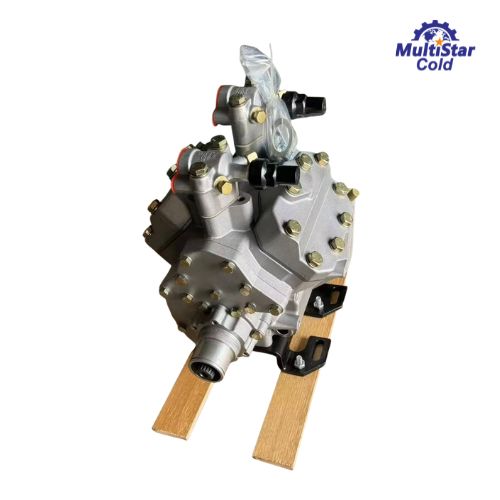

BITZER F400Y Bus AC Compressor – 4-Cylinder Reciprocating Compressor
MultiStar Parts – Your Source for Bus Air Conditioner Parts
The BITZER F400Y is an open-drive reciprocating compressor developed specifically for bus air conditioning systems with low to medium cooling outputs . It builds on the success of the proven 4UFC and 4NFC series, offering a compact, lightweight alternative with technical advancements .
CROSS-REFERENCE PART NUMBERS:
- F400Y, F 400 Y, F-400-Y, F400. F 400
- LA18.060Y
Parameter
Specification
Model
F400Y
Number of cylinders
4
Cylinder volume
399.5 cc
Displacement (at 1450 rpm)
34.8 m³/h
Displacement (at 3000 rpm)
71.9 m³/h
Weight
23 kg
Oil charge
1.0 L
Suction line connection
28 mm (1 1/8″)
Discharge line connection
22 mm (7/8″)
Speed range
500 – 4500 rpm
Magnetic clutch weight
~9.5 kg (LINNIG LA18.060Y)
