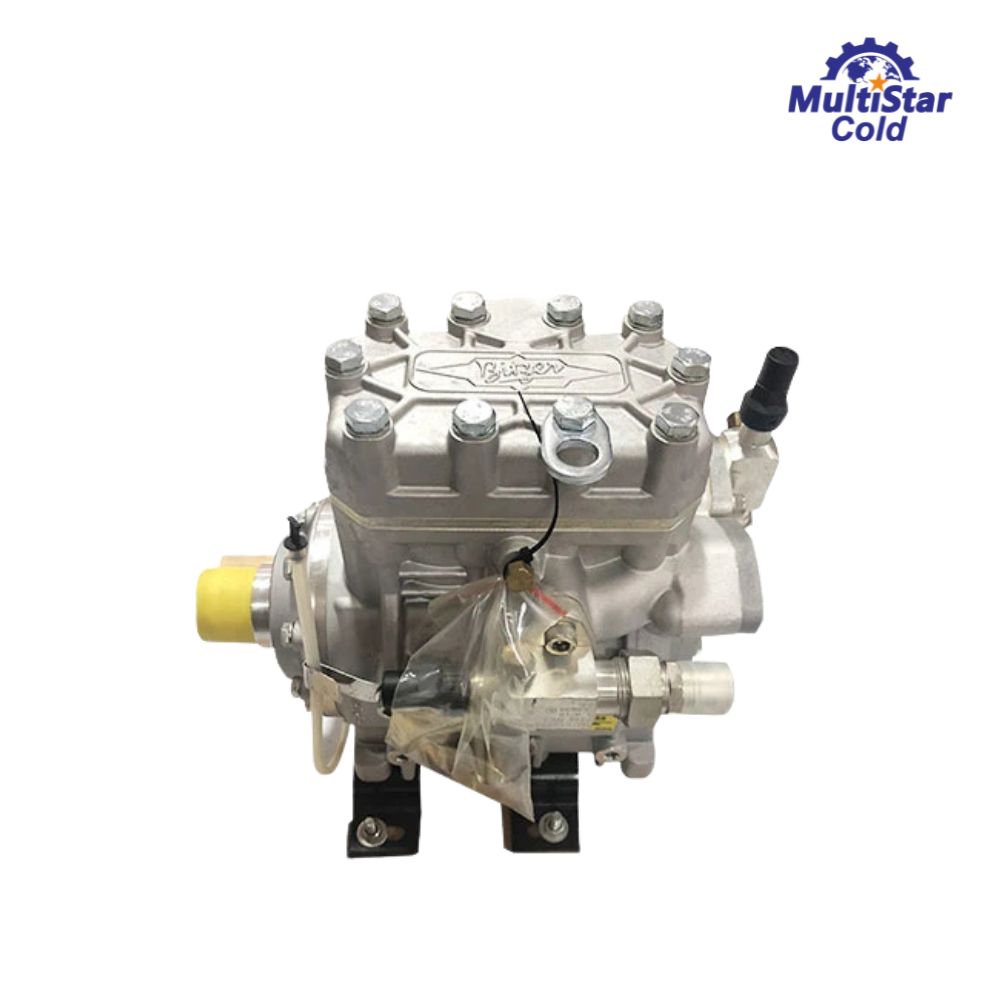

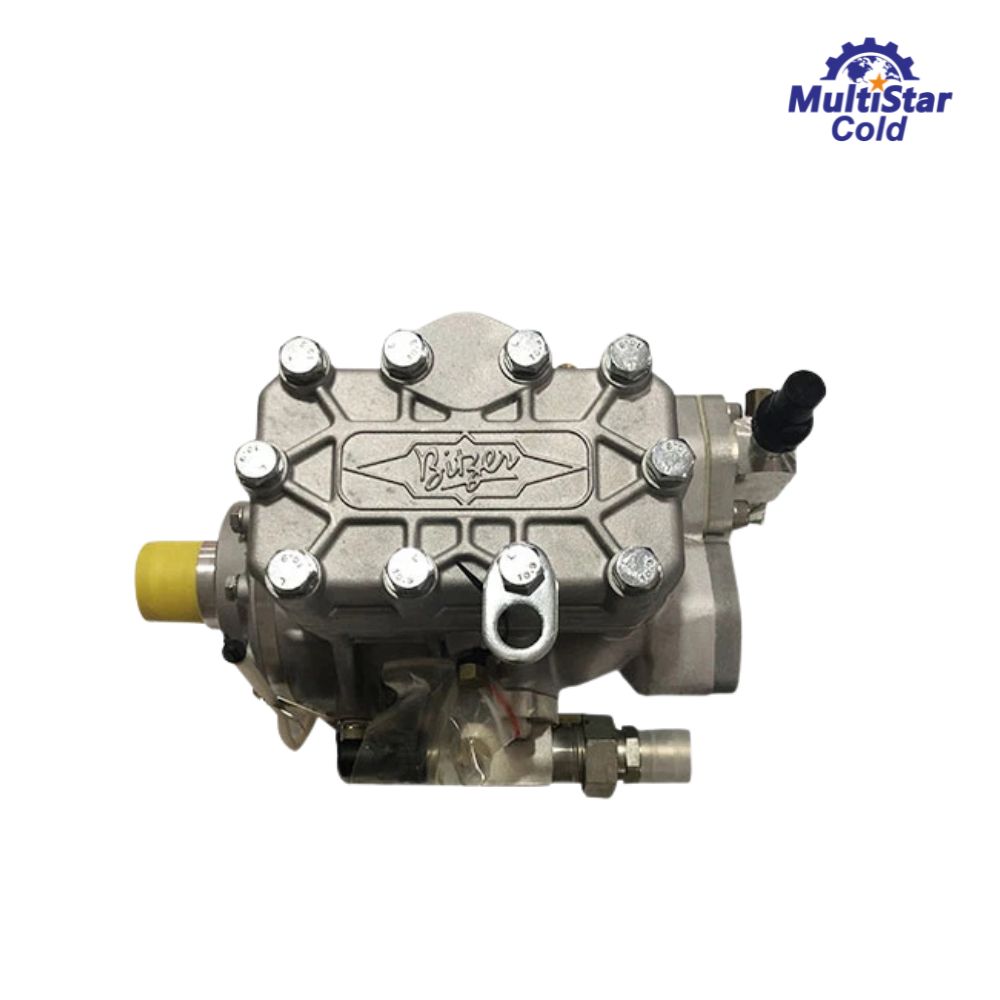

BITZER 2GFCY Bus AC Compressor – 2-Cylinder
MultiStar Parts – Your Source for Bus Air Conditioner Parts
The BITZER 2GFCY is the latest addition to the ROADSTAR family, a slim 2-cylinder aluminum compressor designed specifically for air conditioning and refrigeration in medium and small buses as well as refrigerated trucks .
CROSS-REFERENCE PART NUMBERS:
- 2GFCY
Parameter
Specification
Model
2GFCY
Number of cylinders
2
Cylinder volume
354 cm³
Bore x Stroke
2 x 70 x 46mm
Displacement (1450 rpm)
30.8 m³/h
Displacement (3000 rpm)
63.8 m³/h
Weight (without clutch)
19.0 kg
Weight (mounting feet)
+1.5 kg
Oil charge
0.7 dm³
Speed range
500 – 3500 rpm
Suction line connection
28 mm (1 1/8″)
Discharge line connection
22 mm (7/8″)
Max. pressure (LP/HP)
19 / 28 bar
he BITZER 2GFCY is widely used in the following applications:
🧲 Recommended Magnetic Clutches
The BITZER 2GFCY is driven via V-belt through an electromagnetic clutch. Compatible models include:
Drive Belts: 2 x SPB V-belts
Multistar Parts Co., Ltd. – Your trusted partner for bus air conditioning compressors and complete HVAC spare parts. OEM-grade quality, competitive pricing, global shipping from China.
