Thermo King Units

High-Performance Cooling for Light, Medium & Heavy Vehicles

The Thermo King SV Series is a range of high-performance refrigeration units specifically engineered for medium and heavy-duty refrigerated transport vehicles . Built on an all-new platform with an optimized refrigeration system, robust TK compressors, and proven components, the SV series delivers superior cooling capacity, quick pull-down, and precise temperature control – protecting perishable cargo and reducing load loss concerns .

InquiryDownload PDFContact usWhatsapp

Factory-Direct Supply, Competitive Pricing, and Extensive Inventory

Multistar Parts Co., Ltd. understands that refrigeration units are the backbone of any cold chain operation—and a significant cost center for fleet management. Through our strategic partnership with authorized local Thermo King dealers, we secure direct access to genuine OEM units at dealer-level pricing, far below standard retail rates.

We maintain extensive ready-to-ship inventory across multiple popular models, enabling rapid response and immediate dispatch—minimizing your downtime and eliminating long factory lead times. Whether you’re a fleet operator planning bulk procurement or facing an emergency replacement, we deliver efficient, cost-effective, and reliable supply solutions.

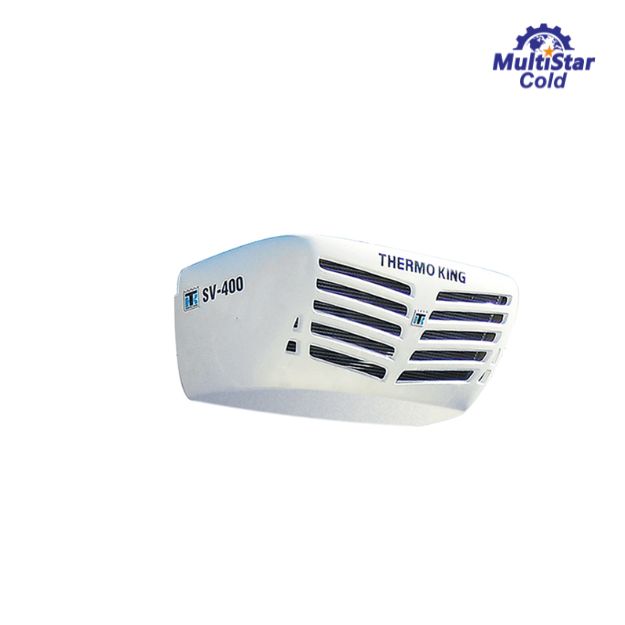

The Thermo King SV-400 is a vehicle-powered refrigeration unit covering a temperature range of -25°C to +30°C . It is equipped with a robust TK16 6-cylinder compressor (163 cm³ displacement) and utilizes R-404A refrigerant .

The unit is available in both wall-mounted and front-mounted configurations, offering flexible installation options for various vehicle body designs . A supplier listing for a refrigerated truck with the SV-400 as standard equipment confirms its use in chilled transport applications .

Key Technical Specifications
ParameterSpecification
Temperature Range-25℃ ~ +30℃
RefrigerantR-404A
Refrigerant Charge1.8 kg
Compressor ModelTK16
Number of Cylinders6
Displacement163 cm³
Cooling Capacity (A.T.P. U.N. Standard @30°C Ambient)
ConditionCooling Capacity
Engine Power @0°C4,360 W
Engine Power @-20°C2,350 W
Electric Standby (3-phase) @0°C3,800 W
Electric Standby (3-phase) @-20°C1,860 W
Electric Standby (1-phase) @0°C3,300 W
Electric Standby (1-phase) @-20°C1,500 W
Cooling Capacity (A.R.I. U.S. Standard @38°C Ambient)
ConditionCooling Capacity
Engine Power @2°C4,140 W
Engine Power @-18°C2,250 W
Electric Standby (3-phase) @2°C3,500 W
Electric Standby (3-phase) @-18°C1,780 W
Electric Standby (1-phase) @2°C3,080 W
Electric Standby (1-phase) @-18°C1,300 W
Power Consumption & Weight
ParameterSpecification
Current Draw (12 VDC)40 A
Current Draw (24 VDC)20 A
Condenser Weight35 kg
Evaporator Weight18 kg
Compressor Weight4.7 kg
Evaporator Performance
ParameterSpecification
Airflow (@0 static pressure)1,500 m³/h
Velocity3.3 m/s

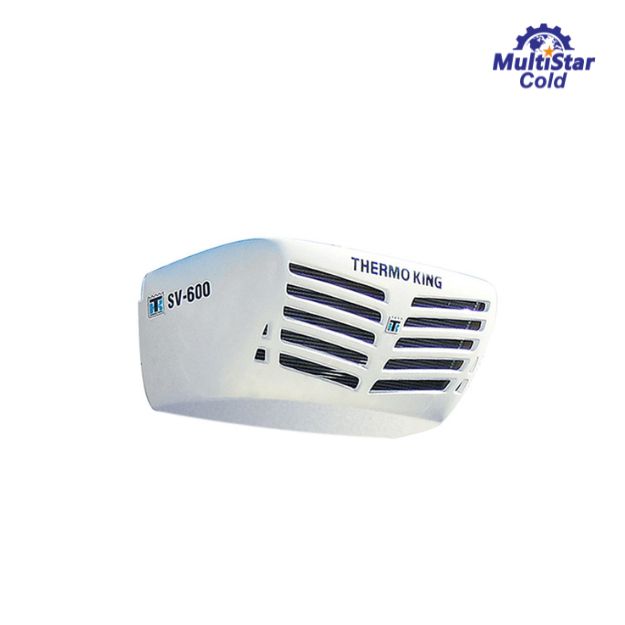

The Thermo King SV-600 is a vehicle-powered refrigeration unit covering a temperature range of -25°C to +30°C. It is equipped with either a TK16 (163 cm³) or TK21 (215 cm³) 6-cylinder compressor and utilizes R-404A refrigerant. The unit is available with optional electric standby power (1-phase or 3-phase), offering flexible installation options.

Key Technical Specifications
ParameterSpecification
Temperature Range-25℃ ~ +30℃
RefrigerantR-404A
Refrigerant Charge2.0 kg
Compressor ModelTK16 / TK21
Number of Cylinders6
Displacement163 cm³ (TK16) / 215 cm³ (TK21)
Cooling Capacity (A.T.P. U.N. Standard @30°C Ambient)
ConditionCooling Capacity
Engine Power @0°C5,060 W
Engine Power @-20°C2,620 W
Electric Standby (3-phase) @0°C4,720 W
Electric Standby (3-phase) @-20°C2,460 W
Electric Standby (1-phase) @0°C4,100 W
Electric Standby (1-phase) @-20°C1,860 W
Cooling Capacity (A.R.I. U.S. Standard @38°C Ambient)
ConditionCooling Capacity
Engine Power @2°C4,820 W
Engine Power @-18°C2,510 W
Electric Standby (3-phase) @2°C4,500 W
Electric Standby (3-phase) @-18°C2,360 W
Electric Standby (1-phase) @2°C3,900 W
Electric Standby (1-phase) @-18°C1,800 W
Power Consumption & Weight
ParameterSpecification
Current Draw (12 VDC)44 A
Current Draw (24 VDC)22 A
Condenser Weight38 kg
Evaporator Weight18 kg
Compressor Weight4.7 kg (TK16)
Evaporator Performance
ParameterSpecification
Airflow (@0 static pressure)1,500 m³/h
Velocity3.3 m/s
Key Features
FeatureBenefit
High cooling capacityQuick pull-down and accurate temperature control
Robust TK compressorHigh reliability and low maintenance cost
Light and compact designEnergy efficient and easy installation
Optional electric standbyMaintains temperature during parking with 1-phase or 3-phase power
Long-life integrated fansReduced maintenance costs
Standardized platformLower inventory cost

The Thermo King SV-700 is a vehicle-powered refrigeration unit covering a temperature range of -25°C to +30°C. It is equipped with a TK21 (215 cm³) 6-cylinder compressor and utilizes R-404A refrigerant. The unit is available with optional electric standby power (1-phase or 3-phase), offering flexible installation options for various vehicle body designs.

Key Technical Specifications
ParameterSpecification
Temperature Range-25℃ ~ +30℃
RefrigerantR-404A
Refrigerant Charge2.2 kg
Compressor ModelTK21
Number of Cylinders6
Displacement215 cm³
Cooling Capacity (A.T.P. U.N. Standard @30°C Ambient)
ConditionCooling Capacity
Engine Power @0°C5,500 W
Engine Power @-20°C2,750 W
Electric Standby (3-phase) @0°C5,780 W
Electric Standby (3-phase) @-20°C2,900 W
Electric Standby (1-phase) @0°C4,900 W
Electric Standby (1-phase) @-20°C2,450 W
Power Consumption & Weight
ParameterSpecification
Current Draw (12 VDC)46 A
Current Draw (24 VDC)23 A
Condenser Weight40 kg
Evaporator Weight20 kg
Compressor Weight5.6 kg (TK21)
Evaporator Performance
ParameterSpecification
Airflow (@0 static pressure)1,800 m³/h
Velocity3.5 m/s
Key Features
FeatureBenefit
High cooling capacityQuick pull-down and accurate temperature control for demanding loads
Robust TK21 compressorHigh reliability and low maintenance cost
Light and compact designEnergy efficient and easy installation
Optional electric standbyMaintains temperature during parking with 1-phase or 3-phase power
Long-life integrated fansReduced maintenance costs
Standardized platformLower inventory cost
Applications
ApplicationDescription
Medium to Heavy TrucksRefrigerated distribution vehicles with demanding cooling requirements
Food TransportFresh produce, dairy, meat, and frozen goods
PharmaceuticalsTemperature-sensitive medical deliveries
Long-Haul DistributionExtended routes requiring consistent temperature control

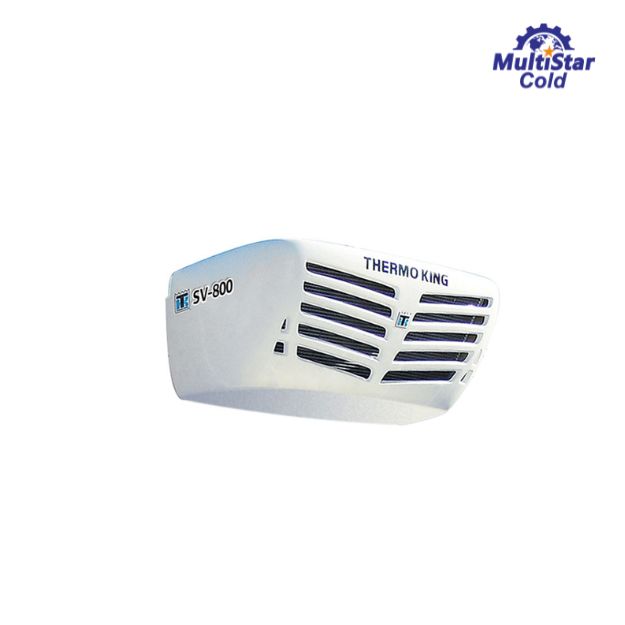

The SV-800 is a vehicle-powered refrigeration unit covering a temperature range of -25°C to +30°C. It is equipped with a TK21 (215 cm³) 6-cylinder compressor and utilizes R-404A refrigerant. The unit offers electric standby power options (1-phase or 3-phase), providing flexible installation for various vehicle body designs.

Key Technical Specifications
ParameterSpecification
Temperature Range-25℃ ~ +30℃
RefrigerantR-404A
Compressor ModelTK21
Number of Cylinders6
Displacement215 cm³
Cooling Capacity (A.T.P. U.N. Standard @30°C Ambient)
ConditionCooling Capacity
Engine Power @0°C6,700 W
Engine Power @-20°C3,200 W
Electric Standby (3-phase) @0°C6,570 W
Electric Standby (3-phase) @-20°C3,400 W
Power Consumption & Weight
ParameterSpecification
Current Draw (12 VDC)48 A
Current Draw (24 VDC)24 A
Condenser Weight42 kg
Evaporator Weight22 kg
Compressor Weight5.6 kg (TK21)
Evaporator Performance
ParameterSpecification
Airflow (@0 static pressure)2,000 m³/h
Velocity3.6 m/s
Key Features
FeatureBenefit
High cooling capacityQuick pull-down and accurate temperature control for demanding loads
Robust TK21 compressorHigh reliability and low maintenance cost
Electric standby capabilityMaintains temperature during parking with 1-phase or 3-phase power
Optimized air distribution2,000 m³/h airflow for consistent temperature throughout the cargo area
Durable constructionBuilt for heavy-duty transport applications

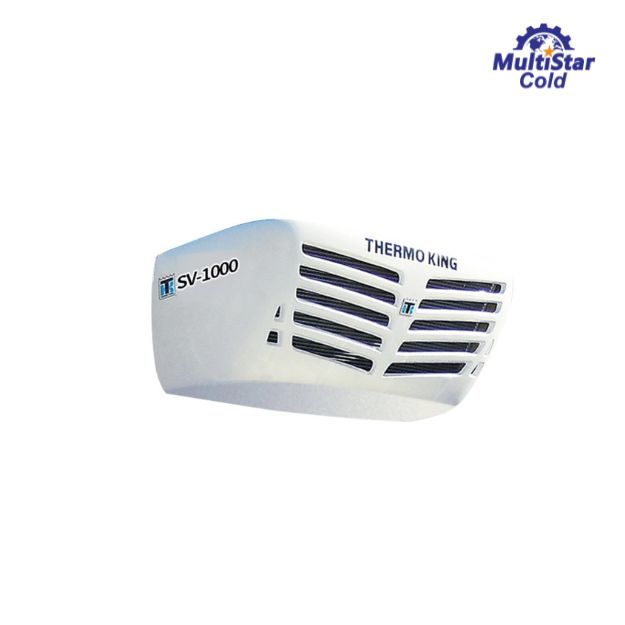

The Thermo King SV-1000 is a vehicle-powered refrigeration unit covering a temperature range of -25°C to +30°C. It is equipped with a TK31 (313 cm³) 6-cylinder compressor and utilizes R-404A refrigerant. The unit is available with electric standby power options, offering flexible installation for various vehicle body designs.

Key Technical Specifications
ParameterSpecification
Temperature Range-25℃ ~ +30℃
RefrigerantR-404A
Refrigerant Charge3.0 kg
Compressor ModelTK31
Number of Cylinders6
Displacement313 cm³
Cooling Capacity (A.T.P. U.N. Standard @30°C Ambient)
ConditionCooling Capacity
Engine Power @0°C8,500 W
Engine Power @-20°C4,550 W
Electric Standby (3-phase) @0°C6,570 W
Electric Standby (3-phase) @-20°C3,400 W
Power Consumption & Weight
ParameterSpecification
Current Draw (24 VDC)30 A
Condenser Weight50 kg
Evaporator Weight30 kg
Compressor Weight6.3 kg (TK31)
Evaporator Performance
ParameterSpecification
Airflow (@0 static pressure)2,500 m³/h
Velocity3.6 m/s
Key Features
FeatureBenefit
Highest cooling capacity8,500W at 0°C – flagship model in SV series
Robust TK31 compressorHigh reliability and low maintenance cost
Electric standby capabilityMaintains temperature during parking with 3-phase power
Maximum air distribution2,500 m³/h airflow for consistent temperature throughout the cargo area
Durable constructionBuilt for the most demanding heavy-duty transport applications
Applications
ApplicationDescription
Heavy-Duty TrucksLarge refrigerated distribution vehicles with highest cooling demands
Bulk Food TransportLarge-volume fresh produce, dairy, meat, and frozen goods
PharmaceuticalsTemperature-sensitive medical deliveries requiring precise control
Long-Haul DistributionExtended routes requiring consistent temperature control

Multistar Parts Co., Ltd. – Your ideal partner for Thermo King refrigeration units. Backed by dealer-level pricing and robust inventory, we deliver cost-effective, reliable cooling solutions for cold chain operators worldwide.
