Direct-Drive Refrigeration for Light Commercial Vehicles

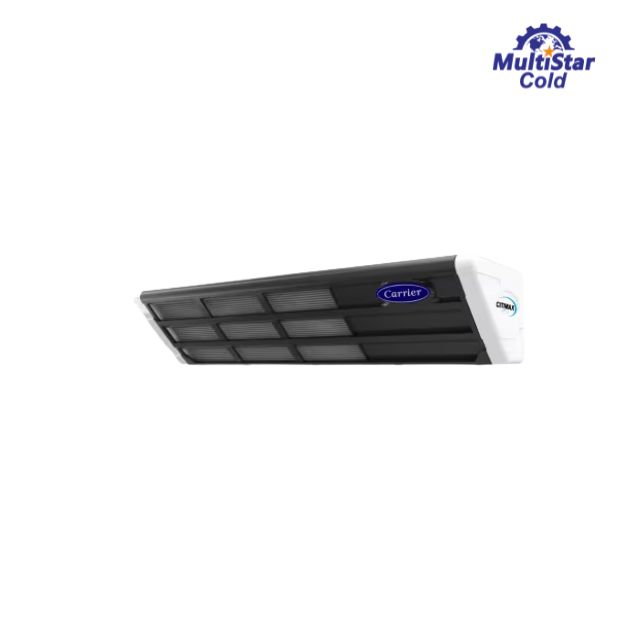

The Carrier Transicold Citimax series is a comprehensive range of direct-drive refrigeration units designed specifically for light commercial vehicles, vans, and trucks . Engineered for the transportation of fresh and frozen goods, the Citimax series delivers high cooling capacity, fast pull-down, and precise temperature control in a lightweight, easy-to-install package .
Factory-Direct Supply, Competitive Pricing, and Extensive Inventory
Multistar Parts Co., Ltd. understands that refrigeration units are the backbone of any cold chain operation—and a significant cost center for fleet management. Through our strategic partnership with authorized local Carrier Transicold dealers, we secure direct access to genuine OEM units at dealer-level pricing, far below standard retail rates.
We maintain extensive ready-to-ship inventory across multiple popular models, enabling rapid response and immediate dispatch—minimizing your downtime and eliminating long factory lead times. Whether you’re a fleet operator planning bulk procurement or facing an emergency replacement, we deliver efficient, cost-effective, and reliable supply solutions.
The Carrier Transicold Citimax 280 is a direct-drive, road-only refrigeration unit designed for light commercial vehicles and vans . Part of the versatile Citimax range, this entry-level model delivers reliable temperature control for the transportation of fresh and frozen goods in urban delivery applications .
📊 Technical Specifications
Compressor
| Parameter | Specification |
|---|---|
| Model | Carrier 130 / Carrier 150 |
| Displacement | 131 cm³ / 147 cm³ |
| Number of Cylinders | 6 |
Refrigerant
Unit Dimensions
The Carrier Transicold Citimax 350 is a direct-drive, road-only refrigeration unit designed for light commercial vehicles . Positioned between the Citimax 280 and 400 in the Citimax range, this mid-tier model delivers enhanced cooling capacity for the transportation of fresh and frozen goods in urban delivery applications .
📊 Technical Specifications
Compressor
Refrigerant & Weight
| Parameter | Specification |
|---|---|
| Type | R-404A / R-452A |
| Charge | 1.15 kg |
| Condenser Weight | 32 kg |
| Evaporator Weight | 16 kg |
Unit Dimensions
The Carrier Transicold Citimax 400 is a direct-drive, road-only refrigeration unit designed for larger light commercial vehicles (LCVs), vans, and trucks . It offers a significant step up in cooling capacity and airflow compared to the Citimax 280/350 models, making it ideal for transporting larger volumes of fresh or frozen goods .
📊 Technical Specifications
Compressor
Refrigerant & Weight
| Parameter | Specification |
|---|---|
| Type | R-404A / R-452A |
| Charge | 1.15 kg |
| Condenser Weight | 32 kg |
| Evaporator Weight | 22-23 kg |
| Total Weight | ~84 kg |
Unit Dimensions
The Carrier Transicold Citimax 500 is a direct-drive, road-only refrigeration unit designed for medium-sized commercial vehicles, including large vans, light-duty trucks, and small delivery trucks .
As a key member of the Citimax range (which includes the 280, 350, 400, 500, and 700 models), this unit delivers enhanced cooling capacity for the reliable transportation of fresh and frozen goods, making it ideal for demanding urban distribution and last-mile delivery applications .
📊 Technical Specifications
Compressor
Refrigerant & Charge
Unit Dimensions

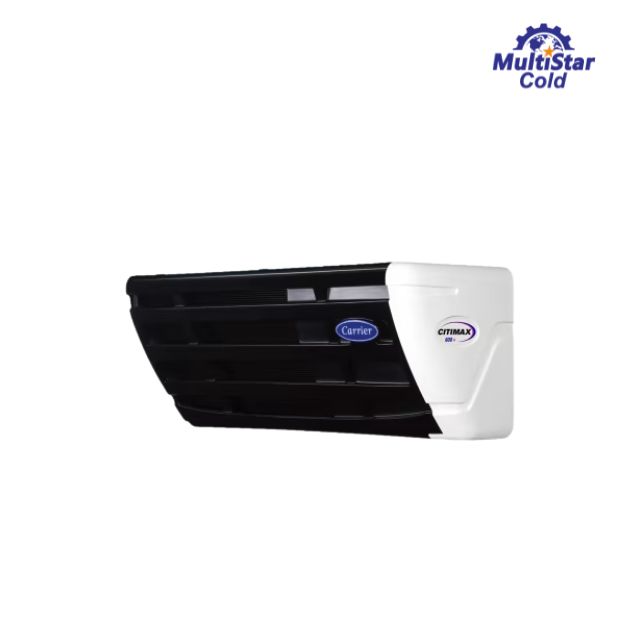

The Carrier Transicold Citimax 600+ is a direct-drive, road-only refrigeration unit that delivers a significant cooling capacity boost over the standard Citimax 600. Designed as a high-capacity solution for medium-sized commercial vehicles, the 600+ model is optimized for demanding distribution of fresh and frozen goods in urban environments.
📊 Technical Specifications
| Parameter | Specification |
|---|---|
| Refrigeration Capacity @0°C (2400 rpm) | 5,500 W |
| Refrigeration Capacity @-20°C (2400 rpm) | 2,800 W |
| Airflow @ High Speed Operation | 2,200 m³/h |
| Total Weight | ~82-84 kg |
⚙️Compressor & Refrigerant
| Parameter | Specification |
|---|---|
| Compressor Model | Carrier 210 |
| Compressor Displacement | 215 cm³ |
| Number of Cylinders | 6 |
| Refrigerant Type | R-404A |
| Refrigerant Charge | 4.0 kg |
📐Unit Dimensions
| Component | Width | Height | Depth |
|---|---|---|---|
| Condenser | 1,413 mm | 503 mm | 543 mm |
| Evaporator | 1,114 mm | 238 mm | 623 mm |
The Carrier Transicold Citimax 700 is the flagship model of the standard Citimax range, designed as a road-only direct-drive unit for larger light commercial vehicles and medium trucks . It delivers high-capacity cooling for fresh and frozen goods distribution, making it ideal for demanding urban delivery applications with box volumes up to 58 m³ .
📊 Technical Specifications
Compressor
Refrigerant & Charge
Unit Dimensions
The Carrier Transicold Citimax 1000 is a high-capacity, direct-drive road-only refrigeration unit specifically designed for heavy-duty refrigerated trucks with high-roof cabs. As a flagship model of the Citimax range for larger vehicles, it delivers substantial cooling power for the demanding transportation of fresh and frozen goods, making it ideal for long-haul distribution and high-volume urban delivery.
📊 Technical Specifications
Compressor Specifications
Unit Dimensions
The Carrier Transicold Citimax 1100 is the flagship model of the Citimax range, engineered as a direct-drive, road-only unit for heavy-duty refrigerated trucks with high-roof cabs . It delivers the highest cooling capacity in the Citimax series, making it ideal for high-volume distribution of fresh and frozen goods, pharmaceutical logistics, and demanding e-commerce supply chains .
📊 Technical Specifications
Refrigeration Capacity
| Parameter | Specification |
|---|---|
| Cooling @0°C (2400 rpm) | 10,200 W |
| Cooling @-20°C (2400 rpm) | 5,100 W |
| Heating Capacity (18°C/-18°C) | 7,600 W |
| Airflow (High Speed Operation) | 3,300 m³/h |
Compressor & Refrigerant
| Parameter | Specification |
|---|---|
| Compressor Model | Carrier 310 |
| Displacement | 313 cm³ |
| Number of Cylinders | 10 |
| Refrigerant Type | R-404A |
| Refrigerant Charge | 3.6 kg |
Dimensions & Weight

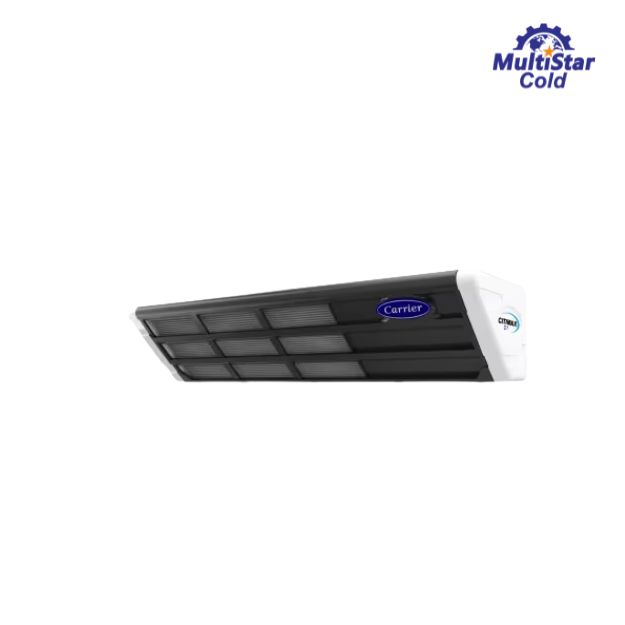

The Carrier Transicold Citimax D5 is a direct-drive refrigeration unit from the new Citimax D Series. It is designed for light commercial vehicles and refrigerated vans operating in urban and regional cold chain distribution . This unit is more powerful, lighter, and more efficient, providing a smarter solution for fresh and frozen goods transport .
📊 Technical Specifications
| Parameter | Specification |
|---|---|
| Cooling Capacity @0°C / +30°C | 5,300 W |
| Cooling Capacity @-20°C / +30°C | 2,700 W |
| Heating Capacity (+18°C / -18°C) | 4,400 W |
| Air Flow | 2,200 m³/h |
Unit Dimensions & Weight
| Component | Width | Height | Depth |
|---|---|---|---|
| Condenser | 1,314 mm | 304 mm | 389 mm |
| Evaporator | 1,106 mm | 238 mm | 603 mm |
| Total Weight | 59 kg |
Compressor & Refrigerant
| Parameter | Specification |
|---|---|
| Compressor Model | Carrier 160 |
| Refrigerant (R404A) | 2.0 kg |
| Refrigerant (R452A) | 2.2 kg |
| Voltage | 12V / 24V |
| Current Draw | 30A (12V) / 18A (24V) |
The Carrier Transicold Citimax D6 is a direct-drive refrigeration unit from the new Citimax D Series . Designed for light commercial vehicles and refrigerated vans operating in urban and regional cold chain distribution , it offers more powerful cooling, a lighter design, and better efficiency than previous models .
📊 Technical Specifications
| Parameter | Specification |
|---|---|
| Cooling Capacity @0°C / +30°C | 6,000 W |
| Cooling Capacity @-20°C / +30°C | 3,100 W |
| Heating Capacity (+18°C / -18°C) | 4,600 W |
| Air Flow | 2,200 m³/h |
Unit Dimensions & Weight
| Component | Width | Height | Depth |
|---|---|---|---|
| Condenser | 1,314 mm | 304 mm | 389 mm |
| Evaporator | 1,106 mm | 238 mm | 603 mm |
| Total Weight | 62 kg |
Compressor & Refrigerant
The Carrier Transicold Citimax D7 is the flagship model of the new Citimax D Series, a next-generation direct-drive refrigeration unit engineered for medium light commercial vehicles and refrigerated vans .
📊 Technical Specifications
Refrigeration & Heating Capacity
| Parameter | Specification |
|---|---|
| Cooling @0°C / +30°C | 7,100 W |
| Cooling @-20°C / +30°C | 3,700 W |
| Heating (+18°C / -18°C) | 5,600 W |
Airflow & Dimensions
| Parameter | Specification |
|---|---|
| Air Flow | 2,500 m³/h |
| Condenser Dimensions | 1479 × 312 × 389 mm |
| Evaporator Dimensions | 1304 × 217 × 698 mm |
| Total Weight | 69 kg |
Compressor & Refrigerant
Multistar Parts Co., Ltd. – Your trusted partner for Carrier Transicold Citimax refrigeration units and complete transport cooling solutions. OEM-grade quality, competitive pricing, and global shipping from China.
